TV Liquid Cooled

Description

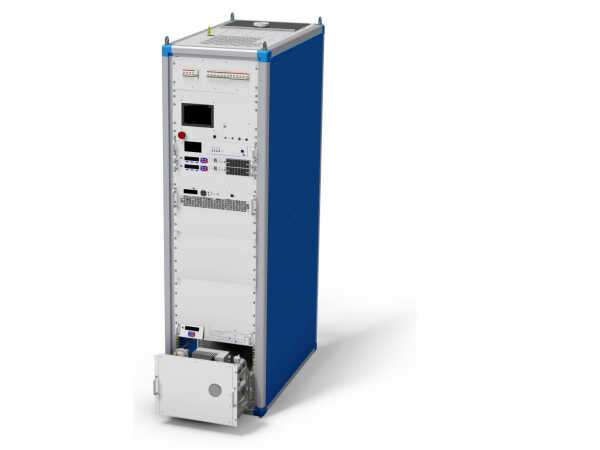

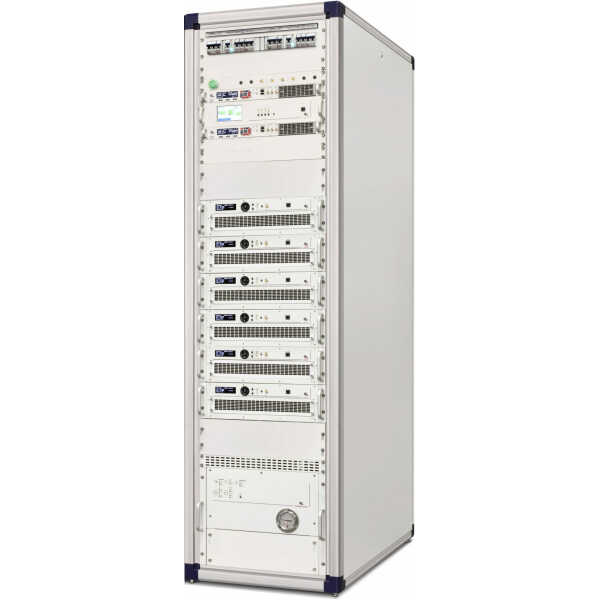

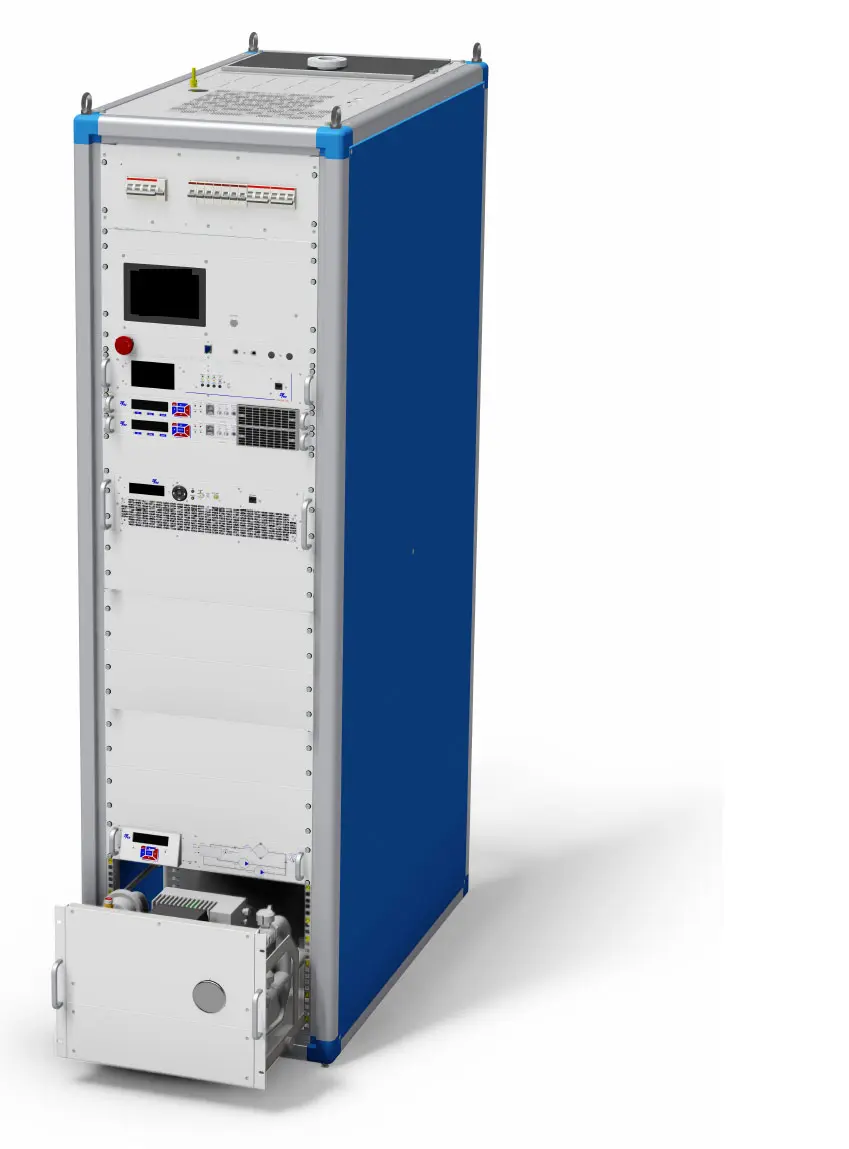

TV Liquid Cooled transmitters from 2,5kw to 40kW ps

High Efficiency Wideband liquid-cooled Transmitter family from 1KW Transmitters to 80KW Transmitters. Multistandard

The E/P Line is the multi amplifier liquid cooled Transmitter family
It is equipped with High Efficiency Wideband.

E/P amplifiers are Hot Pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.

UHF Band IV & V

The Line is the Multi Amplifier Liquid Cooled Transmitter
The Lone is equipped with Driver (Dual Driver Option) and N° 16 plug-In Amplifiers.
It is equipped with High Efficiency Wideband UHF/VHF and Low VHF state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The  amplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.

• Multistandard
• High energy efficiency to minimize consumption
• Fully frequency agile without need for any tuning or trimming.
• Automatic digital static or adaptive Linear and Non-Linear Pre-correction.
• Hot Pluggable Power Amplifiers.
• Power Amplifiers with triple redundant Hot Plug-in power supplies.
• Temperature-controlled closed liquid cooled system for better efficiency and performance equipped with Dual Redundant Pump plug-In (tool-free pump swap) and dual-blower heat exchanger.
• Multi input: 2x ASI seamless switch, 2x SAT (S2 with CAMSlot), 2x Ethernet seamless switch.
• USB input to fast save/load configurations.
• Built-in GNSS receiver (GPS, GLONASS, BEIDU, GALILEO) for SFN applications.
• Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry conta
