VHF Corner reflector antenna 300-360MHz
Category: STL Link Antennas
Description

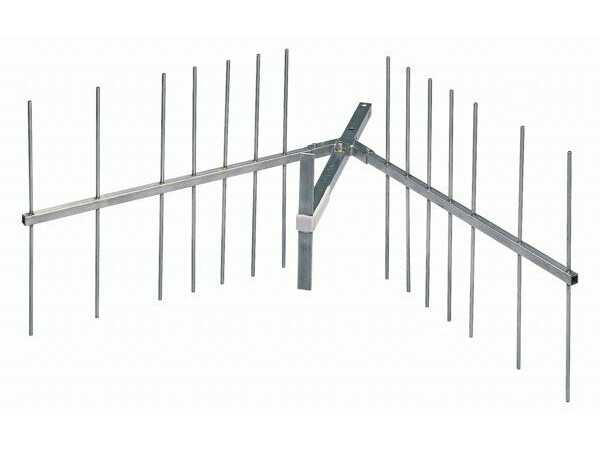

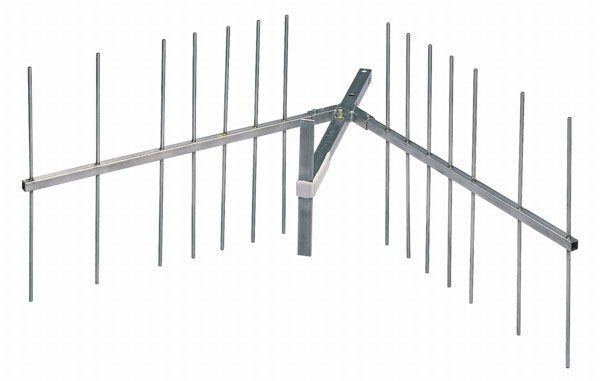

VHF Corner reflector antenna 300-360MHz
The high gain, the directivity, the bandwidth and the robustness made this antenna ideal for the transfer of signals in VHF-UHF range. Entirely made of stainless steel and so safe from the weather elements. To facilitate the shipping it is demountable in more parts.
Specifications:
Freq. range: 300-360MHz
Impedance: 50 Ohm
V.S.W.R.: < 1.5:1
Gain: 9 db
Connector: “N”
Power: 150 W
Polarization: vertical/horizontal
Dimensions: 1450x950x700 mm
Weight: 6.5 Kg
