FM Transmitters
Showing 25–36 of 40 results
1 kW FM Mono / MPX / Stereo Transmitter
Broadcast 1,000W Compact Fm Solid State Transmitter
The Eletec Broadcast F1000 is a top specification FM broadcast transmitter. Advanced Audio Quality exciter. High quality 1 kW FM Stereo Synthesized FM exciter.
1000 Watt FM Mono /MPX / Stereo Transmitter
1kW Transmitter FM Broadcast Medium Power Compact for Radio

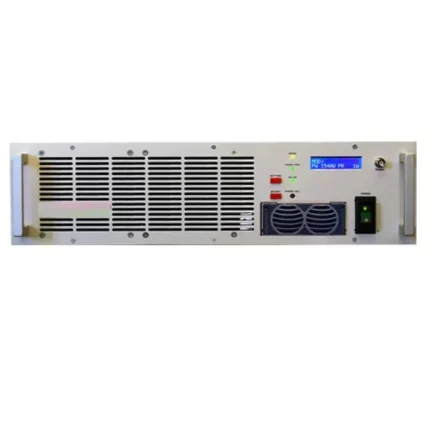

1kW FM Modular Transmitter 1000 Watt
1kW FM Modular Transmitter 1000 Watt F1000/E
Technical features:
Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)
Type: Full Solid State Mos-Fet-Wide Band
Modulation: FM
Emission Class: F3E
VCO Tuning: 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step: 100 KHz (10 KHz on request)
Power Output: 0 ÷ 1000 W
Spurious Emission: < - 80 dB or better
Harmonic Emission: < - 60 dB
Stereo Separation: > 55 dB @ 1 KHz
Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector: 7/16" Female
MPX Input Connector: BNC-F
MPX Input Impedance: 2 KOhm
SCA Input Connector: 3 BNC-F
Protections: Overload, Temperature, VSWR in a fold-back reducing power
Cooling: Forced air
Op. Temperature Range: 0 ÷ 50 °C
Maximum Umidity: 95 % non condensing
AC Supply: 110 ÷ 264 VAC - 47 ÷ 63 Hz
Dimension: 3 unit rack 19", 530 mm depth
Weight: 18 kg
1500W exciter fm transmitter mono/Mpx or stereo
1500W FM 87,5÷108MHz transmitter
1500 W FM Mono / MPX / Stereo Transmitter
Start FM transmitting quickly with the Eletec 1500 1500 Watt FM transmitter
The E1500 1500 Watt FM transmitter is a compact and reliable solution for radio broadcasting
Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install, making it an ideal choice for community radios
This 100W FM Transmitter transmitter can be ordered with the following options:
- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder

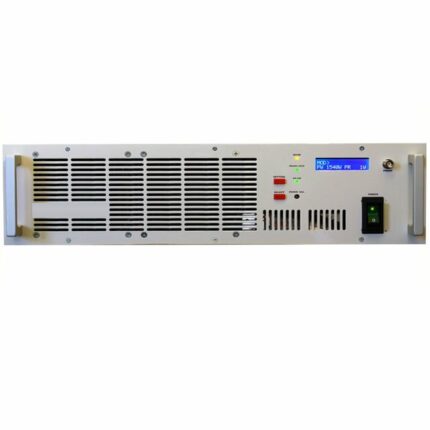

2 kW Solid State FM Transmitter
FAL2000 2KW is a power efficient FM broadcast transmitter with 2000 watt output power that gives you a reliable fm transmitter for your radio station. Build in stereo generator and optional RDS encoder and remote control. 2kW FM Stereo/Mono/MPX/Transmitter . 2,000 WATTS COMPACT FM SOLID STATE TRANSMITTER. The Broadcast Eletec FAL2000 is the most compact size 87.5-108 MHz 2kW FM Transmitter, high efficiency, solid state FM transmitter of 2000W rated power. With advanced self protection and LCD digital front panel control features., the FAL2000 is a 19" rack mount FM Transmitter, with last transistor technology..

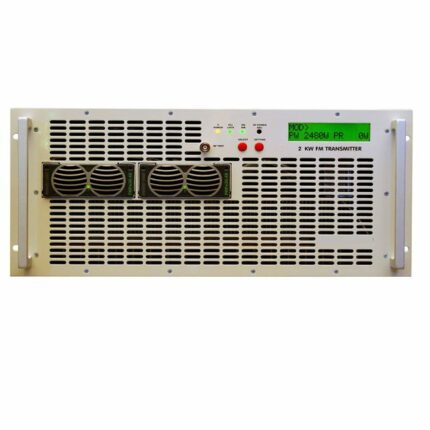

Broadcast EMC2500 2,5Kw FM Transmitter
Broadcast 2,500W Compact Fm Solid State Transmitter
The Eletec Broadcast EMC2500 is the latest model serie available in only 6RU, with extractable power supplie. High performance FM Transmitter 2500W (2,5kW) air-cooled, new type with power supply plug-in, it is the most compact high power transmitter perfect for your station! Eletec take this opportunity to inform you that we are introducing two new product lines ,which I think may be of great interest to all broadcaster’s
2.5kW Transmitter/Exciter
2.5kW Radio Transmitter / Exciter
2500W FM Transmitter Start FM transmitting quickly with the Eletec 100 100 Watt FM transmitter The FM2500 2500 Watt FM transmitter is a compact and reliable solution for radio broadcasting Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range. This transmitter is easy to install, making it an ideal choice for community radios This 2500W FM Transmitter transmitter can be ordered with the following options:- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
