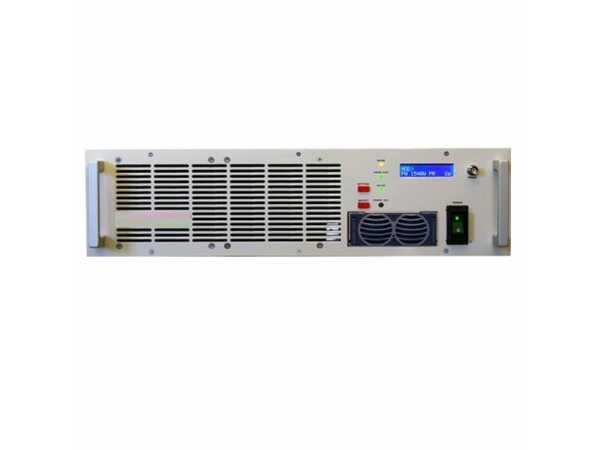

1kW FM Modular Transmitter 1000 Watt
1kW FM Modular Transmitter 1000 Watt F1000/E
Technical features:
Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)
Type:Â Full Solid State Mos-Fet-Wide Band
Modulation:Â FM
Emission Class:Â F3E
VCO Tuning:Â 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step:Â 100 KHz (10 KHz on request)
Power Output: 0 ÷ 1000 W
Spurious Emission:Â < – 80 dB or better
Harmonic Emission:Â < – 60Â dB
Stereo Separation:Â > 55 dB @ 1 KHz
Distortion:Â < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio:Â > 65Â dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio:Â > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector:Â 7/16″ Female
MPX Input Connector:Â BNC-F
MPX Input Impedance:Â 2 KOhm
SCA Input Connector:Â 3 BNC-F
Protections:Â Overload, Temperature, VSWR in a fold-back reducing power
Cooling:Â Forced air
Op. Temperature Range: 0 ÷ 50 °C
Maximum Umidity:Â 95Â % non condensing
AC Supply: 110 ÷ 264 VAC – 47 ÷ 63 Hz
Dimension:Â 3Â unit rack 19″, 530 mm depth
Weight:Â 18Â kg
1kW FM Modular Transmitter 1000 Watt F1000/E
1000 watts fm transmitter
Technical features:
Frequency Range: 87.5 ÷ 108 MHz
Type:Â Full Solid State Mos-Fet-Wide Band
Modulation:Â FM
Emission Class:Â F3E
VCO Tuning:Â 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step:Â 100 KHz (10 KHz on request)
Power Output: 0 ÷ 1000 W
Spurious Emission:Â < – 80 dB or better
Harmonic Emission:Â < – 60Â dB
Stereo Separation:Â > 55 dB @ 1 KHz
Distortion:Â < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio:Â > 65Â dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio:Â > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector:Â 7/16″ Female
MPX Input Connector:Â BNC-F
MPX Input Impedance:Â 2 KOhm
SCA Input Connector:Â 3 BNC-F
Protections:Â Overload, Temperature, VSWR in a fold-back reducing power
Cooling:Â Forced air
Op. Temperature Range: 0 ÷ 50 °C
Maximum Umidity:Â 95Â % non condensing
AC Supply: 110 ÷ 264 VAC – 47 ÷ 63 Hz
Dimension:Â 3Â unit rack 19″, 530 mm depth
Weight:Â 18Â kg
