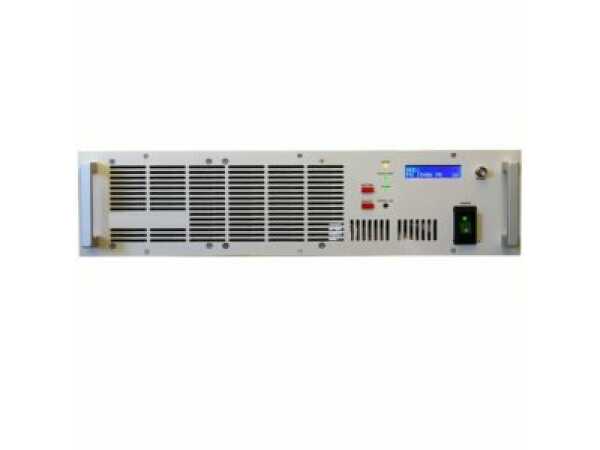

1 kW FM Mono / MPX / Stereo Transmitter

Broadcast 1,000W Compact Fm Solid State Transmitter

The Eletec Broadcast F1000 is a top specification FM broadcast transmitter. Advanced Audio Quality exciter. High quality 1 kW FM Stereo Synthesized FM exciter.
1000 Watt FM Mono /MPX / Stereo Transmitter



1kW Transmitter FM Broadcast Medium Power Compact for Radio

Description

1 kW FM Mono / MPX / Stereo Transmitter



Broadcast 1,000W Compact Fm Solid State Transmitter
The Eletec Broadcast F1000 is a top specification FM broadcast transmitter. Advanced Audio Quality exciter. High quality 1 kW FM Stereo Synthesized FM exciter.
1000 Watt FM Mono /MPX / Stereo Transmitter



FREQUENCY RANGE:
MODULATION:
EMISSION CLASS:
VCO TUNING:
FREQUENCY STABILITY:
SYNTHESIZER STEP:
POWER OUTPUT:
SPURIOUS EMISSION:
HARMONIC EMISSION:
STEREO SEPARATION:
DISTORSION:
BASE BAND:
UNWEIGHTED S/N RATIO:
ASYNCRONOUS AM S/N Ratio:
SYNCRONOUS AM S/N Ratio:
PRE-ENPHASIS 50/75 µS :
RF OUT CONNECTOR N-F:
MPX INPUT:
MONO INPUT:
SCA INPUT:
COOLING:
TEMPERATURE RANGE:
MAXIMUM UMIDITY:
AC SUPPLY:
DIMENSION:
WEIGHT:
87.5 ÷ 108 MHz
FM
F3E
25MHz
± 2.5 ppm
100KHz opz. 10KHz
0 – 1000 Watts
< – 80 dB or better
< – 70 dB
> 55 dB @ 1KHz (typ. 60dB)
< 0.1 % (typ. 0.06%) @ 1KHz
30 Hz÷60 KHz within 0.15 dB
>80 dB (30Hz ÷ 15KHz 50 µS RMS)
> 70 dB Ref. 100% AM 400Hz
> 65 dB with FM @ 75KHz @400Hz
Jumper selectable
50 Ohm
BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm
CANON / 0dBm / -10dBm÷ 6dBm 2KOhm
3 BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm
Convection for RF PA and a little fan for inside
0 ÷ 45 °C
90 %
194 ÷ 260 VAC / – 47 ÷ 63 Hz
2 unit rack 19″, 360mm depth
12 Kg

1000 Watt Broadcast FM Transmitter
