Description

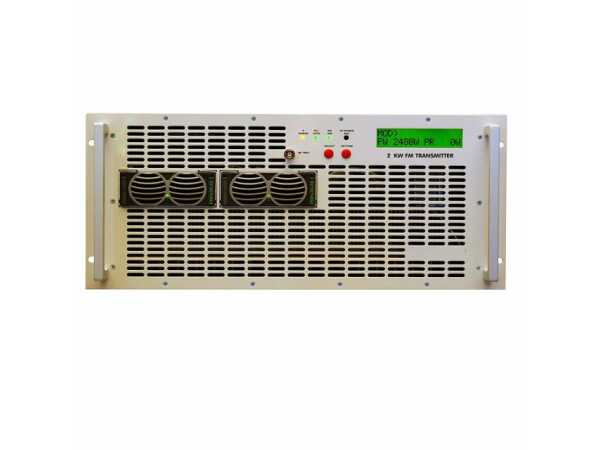

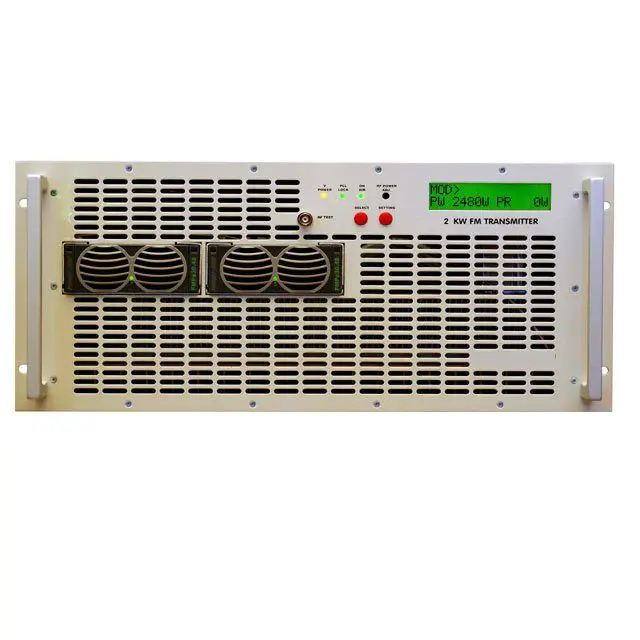

Broadcast EMC2500 2,5Kw FM Transmitter
Broadcast 2,500W Compact Fm Solid State Transmitter
FM Transmitters 2500W (2,5kW) air-cooled, new type with power supply plug-in
*Instant front panel programmability in 10 kHz increments
*Adjustable power output from 10 to 2500 W
*Exctractable power supplies
*Telemetry features include power on-off, fwd, ref power metering, modulation, temperature readouts
The Eletec Broadcast EMC2500 is the latest model serie available in only 6RU, with extractable power supplie.
High performance FM Transmitter 2500W (2,5kW) air-cooled, new type with power supply plug-in, it is the most compact high power transmitter perfect for your station!
0 –2500 Watts adjustable power
High-efficiency MOS-FET technology
Easy-to-use control interface
2500W FM Transmitter Solid State, the new EM2500 FM Transmitter Exciter Series. Innovative FM broadcast transmitter for radio stations, hot-plug POWER SUPPLY module, high performance. Easy to maintain, high reliability, easier to operate.
Includes low pass/harmonic filter and can be used as a stand-alone transmitter
-Instant front panel programmability
-All functions via LCD password protected
-Adjustable power output from 10 to 4000 W
-Extractable power supplies
-Telemetry features include: power on-off, fwd & reflected power metering, modulation and temperature.
-Latest audio sound in the FM Broadcasting industry with TOP Audio & RF technology.
2500W FM Transmitter
Features
FREQUENCY RANGE: 87.5 ÷ 108 MHz
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: ± 2.5 ppm (bette upon request)
SYNTHESIZER STEP: 10KHz / 100KHz
POWER OUTPUT: 0 ÷ 2500 Watts
SPURIOUS EMISSION: < – 85 dBc or better
HARMONIC EMISSION: < – 74 dBc
MPX STEREO SEPARATION: > 56 dB @ 1KHz
HARMONIC DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.05 dB
UNWEIGHTED S/N RATIO: >80 dB (30Hz ÷ 15KHz 50μS RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 60 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 μS int. selectable
RF OUT CONNECTOR: 7/16”-F 50 Ohm 7/8″ 50Ohm
MPX INPUT CONNECTOR: BNC-F
MPX INPUT IMPEDANCE: 2 KOhm
SCA INPUT CONNECTOR: BNC-F
COOLING: High efficiency brushless fans
OP.TEMPERATURE RANGE: – 10 ÷ 45 °C
MAXIMUM UMIDITY: 90 % not condensing
AC SUPPLY: 110 ÷ 250 VAC – 47 ÷ 63 Hz
OVERALL EFFICIENCY >70%
DIMENSION: 5 unit rack 19″, 600mm depth
2,500W Fm Transmitter
2 YEAR INTERNATIONAL WARRANTY
FM Compact Transmitter 2000W, 2500W, 3000W, 3500W, 4000W, and 5000W new type with power supply plug-in
