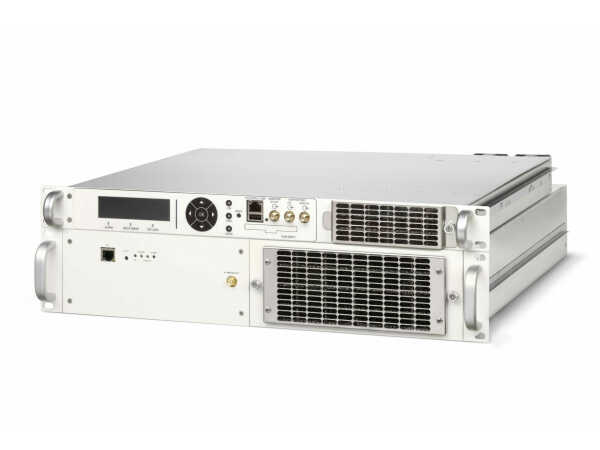

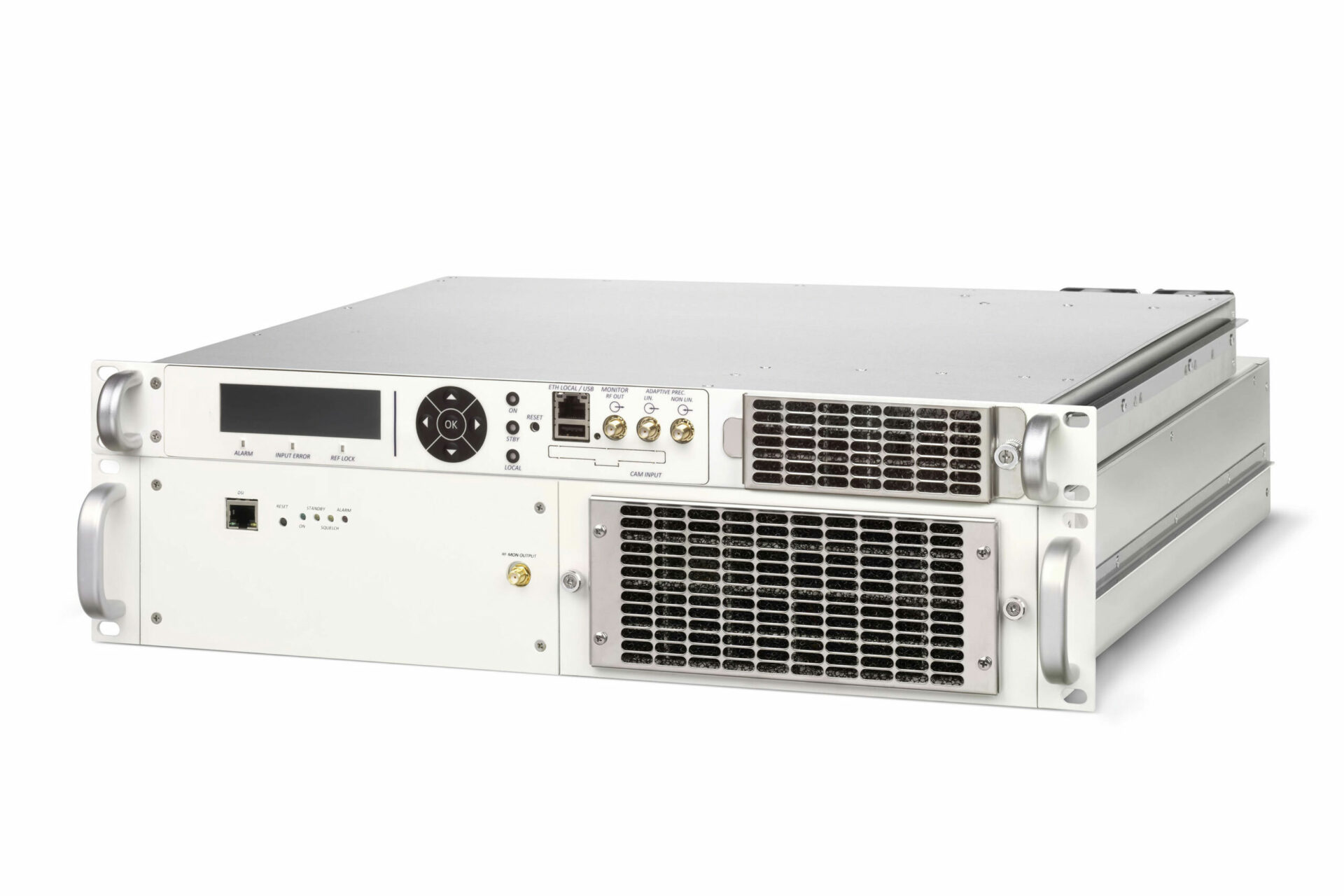

600W ps UHF TV TRANSMITTER
360W COFDM,400W ATSC, 600Wps
Redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance
Typology: UHF Band IV & V
The S/01 UHF is the Compact AIR Cooled TV transmitter S Line.
Fully wide band high eﬃciency with a system eﬃciency up to 44%.
Composed by one PCM driver (Dual Driver Option) and one (1) S Amplifier.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is next generation of air cooled transmitters, available in band I, Ill and IV-V.
The S family is designed to be the most efficient, robust and high performance amplifiers in the DTV era.
The S ampliﬁers are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance
- 2x ASI with Hitless switch, 2x IP Ethernet, A/V for analog broadcasting.
- The most advanced manual, Automatic and Adaptive Linear and Non-Linear Pre-corrector.
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
- USB input to fast save/load conﬁgurations.
- Amplifier equipped with No. 3 Hot Pluggable power supplies.
- Overall efficiency up to 44% with highest performances in terms of MER, BER and shoulders.
- Independent temperature controlled low-noise fans.
- Use of tools is reduced almost to zero including pallets replacement.
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
