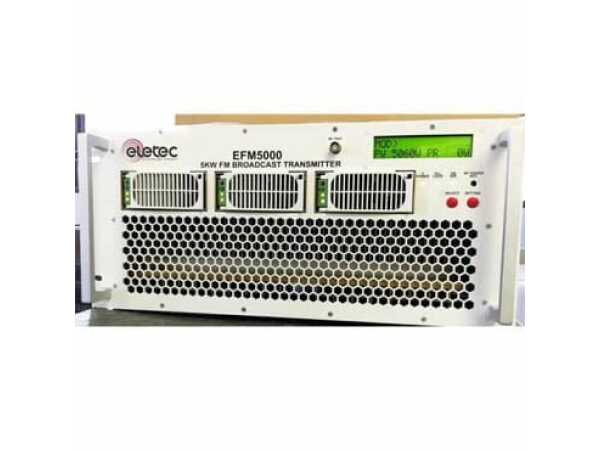

5 kW FM Modular Transmitter MFM5000 – Eletec Broadcast Transmitters

5KW COMPACT FM TRANSMITTER

FM Transmitters MFM5000 Series is a range of modular broadcast FM transmitters designed to operate in the whole 87.5 – 108 MHz frequency range for FM radio broadcasting, with power range 2000W, 2500,3000, 3500, 4000, 5000W and 6000W
Superior audio quality and sound purity

High Power 5kW FM Transmitter Broadcast Equipment

Description

5 kW FM Modular Transmitter MFM5000

5000W Compact FM Transmitter

FM Compact Transmitters MFM5000 Series is a range of modular broadcast FM transmitters designed to operate in the whole 87.5 – 108 MHz frequency range for FM radio broadcasting, with power range 2000W, 2500,3000, 3500, 4000, 5000W and 6000W



Superior audio quality and sound purity

High Power 5kW FM Transmitter Broadcast Equipment

FM Broadcast Transmitter 5 kW

TECHNICAL SPECIFICATIONS

Rated Output Power: 10-5000 Watts continuously variable (ALC)
RF Output Connector: 7/8 EIA Flange
RF Output Impedance: 50 ohm
Frequency Range: 87.5 MHz to 108 MHz
Frequency Programmability: direct from front panel in 10 kHz increments
Frequency Stability: better than 5 ppm (± 500 Hz)
Modulation Type: direct carrier frequency modulation
Emission class: F3E
Spurious & Harmonic Suppression: < – 80 dB or better
Stereo Separation: 55 dB @ 1 Khz
Distortion: < 0.1 % (typ. 0.05 %)
Asynchronous AM S/N Ratio: 65 dB below reference carrier with 100%amplitude modulation at 400Hz
without de-emphasis, no FM modulation present
Synchronous AM S/N Ratio: 60 dB or better below reference carrier with 100% amplitude modulation at 400 Hz, without de-emphasis, FM modulation = ±75 kHz at 400 Hz
AC Power Requirement: 200-240 VAC, ±10%, 50-60 Hz, single phase (Internally Selectable)
Power Consumption: approx. 6500 W from AC
Panel Size: 483 mm (19″) W x 132 mm (7″) H (5 standard rack spaces high)
Overall Depth:  540 mm (21″)
Weight: 30 Kg
Ambient Temperature Range: 0° to 50° C (32° to 122° F)
Pre-emphasis: internally selectable
