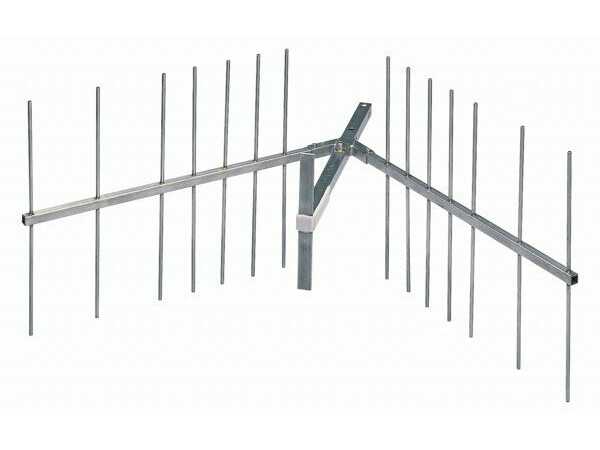

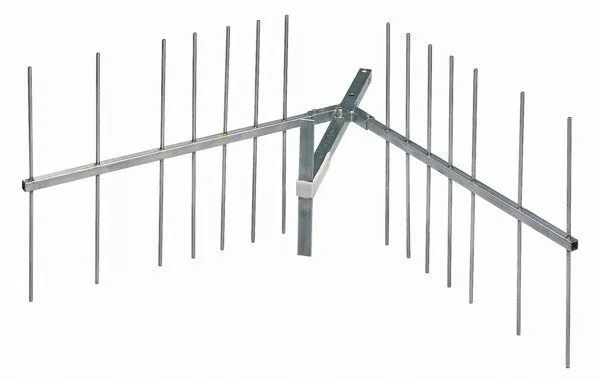

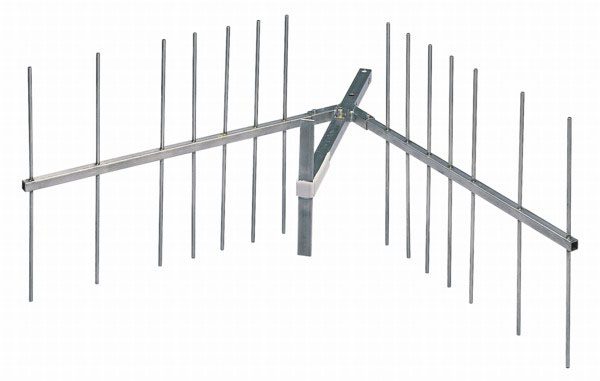

VHF Corner reflector antenna 380-530MHz
Category: STL Link Antennas
Description
VHF Corner reflector antenna 380-530MHz
The high gain, the directivity, the bandwidth and the robustness made this antenna ideal for the transfer of signals in VHF-UHF range. Entirely made of stainless steel and so safe from the weather elements. To facilitate the shipping it is demountable in more parts.
Specifications:
Freq. range : 380-530 MHz
Impance: 50 Ohm
V.S.W.R. : < 1.5:1
Gain: 9 db
Connector: “N”
Power: 150 W
Polarization: vertical/horizontal
Dimensions: 1140x750x500 mm
Weight: 5 Kg
