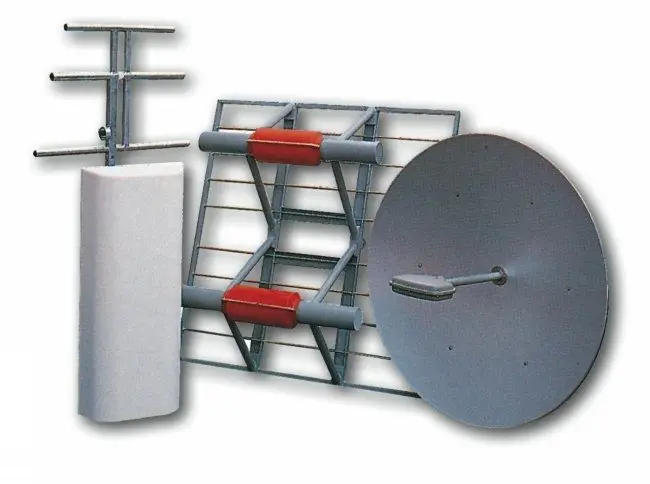

Parabolic antenna
Standard Parabolic Antennas
Parabolic antenna
ELETEC BROADCAST parabolic antennas are available with various diameters from 60 to 300 cm, developed to be used for radio link systems.
Each antenna could be provided also with fiberglass radome, on request. The radome is used to protect the feed, introducing a very limited attenuation.
Parabolic reflectors could be equipped with different feeders which can be with single or double polarization, broadband, rectangular waveguide, cavity, circular and Yagi types, which can operate on various frequency ranges from 1 to 26GHz.
Strong mechanical construction guarantees a long term reliable stability of performance in all weather conditions.
It is possible to realize custom parabolic antenna. A complete range of accessories for the installation are available on request.
|
MODEL
|
DESCRIPTION
|
DIAMETER
|
FREQUENCY RANGE
|
|
EP06/2
|
PARABOLIC ANTENNA
|
60 cm
|
1.5 / 2.7 GHz
|
|
EP1/2
|
PARABOLIC ANTENNA
|
100 cm
|
1.5 / 2.7 GHz
|
|
EP12/2
|
PARABOLIC ANTENNA
|
120 cm
|
1.5 / 2.7 GHz
|
|
EP18/2
|
PARABOLIC ANTENNA
|
180 cm
|
1.5 / 2.7 GHz
|
|
EP06/6
|
PARABOLIC ANTENNA
|
60 cm
|
4.5 / 7.2 GHz
|
|
EP1/6
|
PARABOLIC ANTENNA
|
100 cm
|
4.5 / 7.2 GHz
|
|
EP12/6
|
PARABOLIC ANTENNA
|
120 cm
|
4.5 / 7.2 GHz
|
|
EP18/6
|
PARABOLIC ANTENNA
|
180 cm
|
4.5 / 7.2 GHz
|
|
EP06/10
|
PARABOLIC ANTENNA
|
60 cm
|
10 / 15 GHz
|
|
EP1/10
|
PARABOLIC ANTENNA
|
100 cm
|
10 / 15 GHz
|
|
EP12/10
|
PARABOLIC ANTENNA
|
120 cm
|
10 / 15 GHz
|
|
EP18/10
|
PARABOLIC ANTENNA
|
180 cm
|
10 / 15 GHz
|
|
ER06
|
RADOME
|
60 cm
|
–
|
|
ER1
|
RADOME
|
100 cm
|
–
|
|
ER12
|
RADOME
|
120 cm
|
–
|
|
ER18
|
RADOME
|
180 cm
|
–
|
|
Please contact sales office for other available kind
|
|||
