Log Per 5 Element FM Antenna
Description

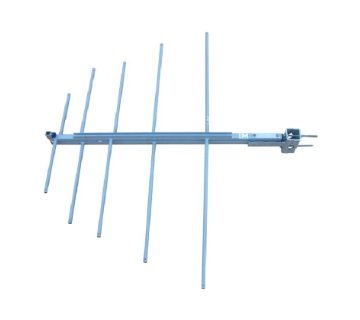

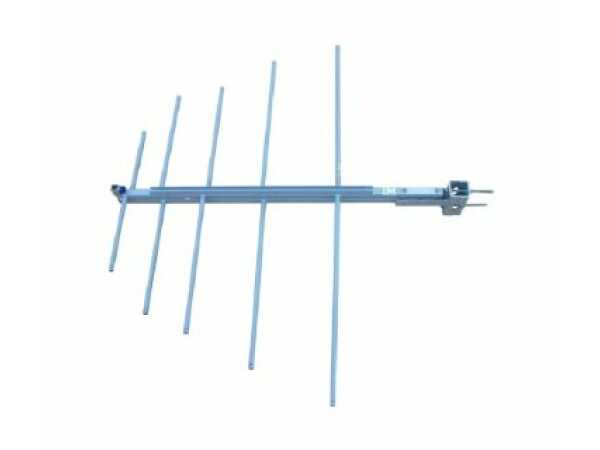

Log Per 5 Element FM Antenna
Log-periodic 5 elements antenna in painted aluminium or stainless steel
Directional irradiation pattern with reduced side lobes.
Suitable for FM stacked array antenna systems
Broadband 87.5 ÷ 108 MHz
Light
WORKING BAND: 87.5÷108 MHz
BANDWIDTH: FM band
GAIN: 5.5 dBd (7.7 dBi)
VSWR: ≤ 1.23:1 (-19.7 dB)
POLARIZATION: vertical (or horizontal)
IMPEDANCE: 50 Ohm unbalanced
HALF POWER BEAMWIDTH: E-Plane – 66° / H-Plane – 106°
LIGHTNING PROTECTION: all metal parts DC grounded including inner conductors
