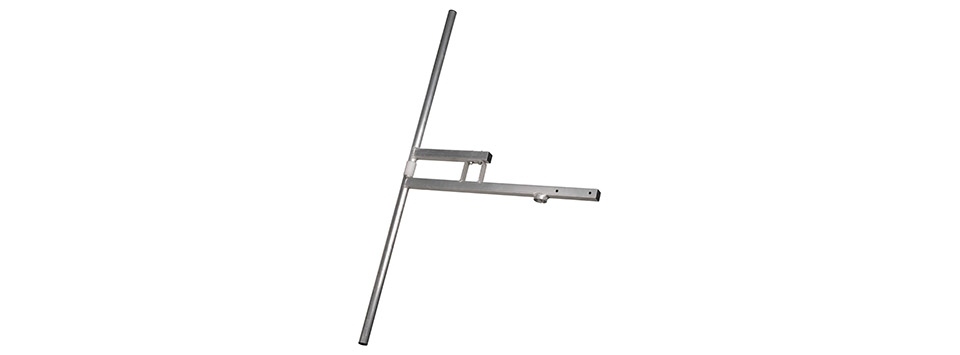

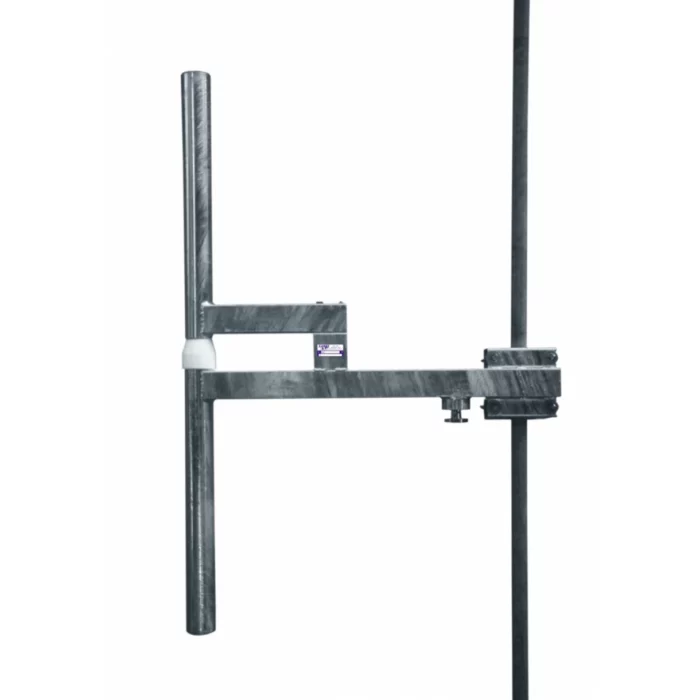

FM Broadcast Antenna Single Dipole
Category: FM Broadcast Antenna
Description
FM Broadcast Antenna Single Dipole
Specifications:
Freq. range: 87.5 – 108 MHz
Impedance: 50 Ohm
V.S.W.R. : <1.4:1
Gain: 2db
Connectors: N – 7/16 – 7/8
Weight: 7 Kg
Max power: 2 KW
Polarization: vertical
Dimensions: 1400x800x60 mm
