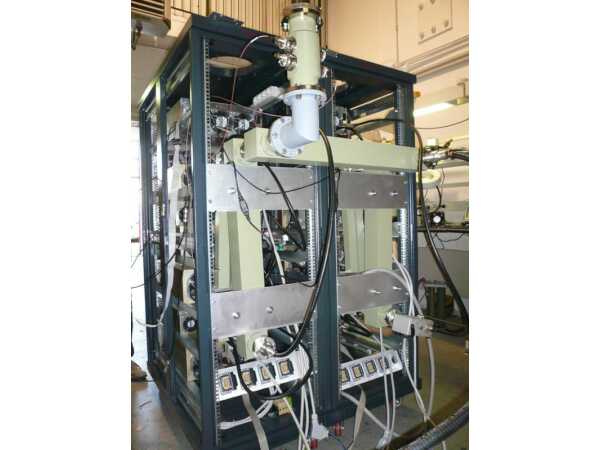

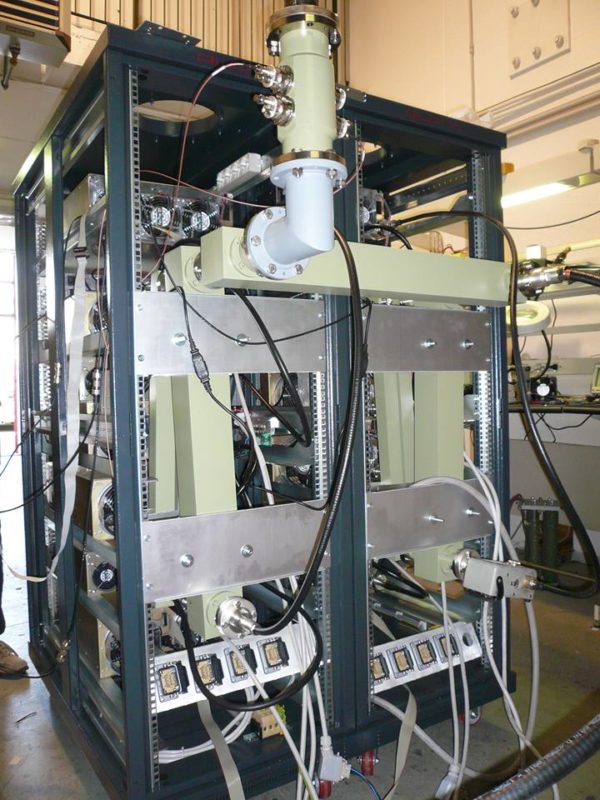

High power 20kw fm transmitter broadcast equipment
Related products
10kW FM Transmitter 10000 Watt
10 kW FM Transmitter . 10,000 Watts SOLID STATE FM transmitter 87.5 – 108 MHz Range. Broadcast FM transmitter 10KW, serving FM radio stations in many different countries. Equipped with the latest MOSFET RF technology, the 10kW FM Transmitter features excellent efficiency and compact design.
Two 5KW Amplifiers are combined in a compact and clear modular design. High efficiency of at least 64% independent of output power level. Each RF amplifier has its own power supply, guard circuits and integrated harmonic filter. Each amplifier module is, therefore, selfmonitoring and self-protective Reduced stock of spares and high standardization level through the use of identical modules Easy monitoring and intelligent fault detection system as well as remote control via BITBUS or modem High reliability and optimum price/performance ratio are distinguishing features of the 10K
40kW FM Transmitter High Efficiency
40kW FM Transmitter
The series belongs to the High Power VHF product family of FM Radio Transmitters fully solid state technology air cooled
The ELETEC 40kw is realised with last technology, that allows drastic decrease of the temperature to a sensitive reduction of the consumptions.
ELETEC 40Kw is a system of total quality thanks to a diagnostic remote, fast and capillary assistance, low consumptions, duration in the time and it is
easy to use.
Combining the basic form AMP5000 we have gotten transmitters from 5Kw to 40Kw in configurations from 1 0 to N 1. All the components of the series shared the same characteristics to the RF module, power supply, logics of control, systems of protection, derating, facility of installation and simplicity of setup. The advantages of the module systems are as follows:
