3.5KW FM transmitter
Description

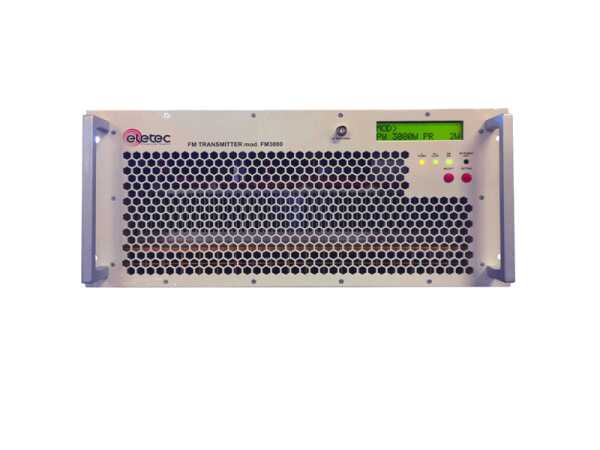

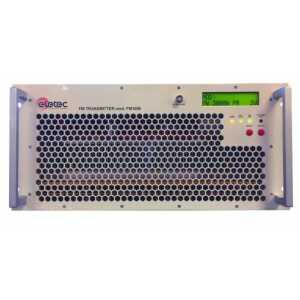

FM3500LCD 3.5KW FM TRANSMITTER
3.5KW FM transmitter, FM3500LCD 3.5kW FM TRANSMITTER
0 – 3500 Watts adjustable power
High-efficiency MOS-FET technology
Includes low pass/harmonic filter and can be used as a stand-alone transmitter
-Instant front panel programmability
-All functions via LCD password protected
-Adjustable power output from 10 to 3500 W
-Telemetry features include: power on-off, fwd & reflected power metering, modulation and temperature.
-Latest audio sound in the FM Broadcasting industry with TOP Audio & RF technology.
3.5kW FM Transmitter
Features
FREQUENCY RANGE: 87.5 ÷ 108 MHz
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: ± 2.5 ppm (bette upon request)
SYNTHESIZER STEP: 10KHz / 100KHz
POWER OUTPUT: 0 ÷ 3500 Watts 0 ÷ 5000 Watts
SPURIOUS EMISSION: < – 85 dBc or better
HARMONIC EMISSION: < – 74 dBc
MPX STEREO SEPARATION: > 56 dB @ 1KHz
HARMONIC DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.05 dB
UNWEIGHTED S/N RATIO: >80 dB (30Hz ÷ 15KHz 50μS RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 60 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 μS int. selectable
RF OUT CONNECTOR: 7/16”-F 50 Ohm 7/8″ 50Ohm
MPX INPUT CONNECTOR: BNC-F
MPX INPUT IMPEDANCE: 2 KOhm
SCA INPUT CONNECTOR: BNC-F
COOLING: High efficiency brushless fans
OP.TEMPERATURE RANGE: – 10 ÷ 45 °C
MAXIMUM UMIDITY: 90 % not condensing
AC SUPPLY: 110 ÷ 250 VAC – 47 ÷ 63 Hz
OVERALL EFFICIENCY >70%
DIMENSION: 5 unit rack 19″, 600mm depth
