FM antenna Dipole – Omni directional
FM antenna Dipole – Omni directional
Eletec Broadcast sells a wide range of FM dipole antennas and accessories
Description

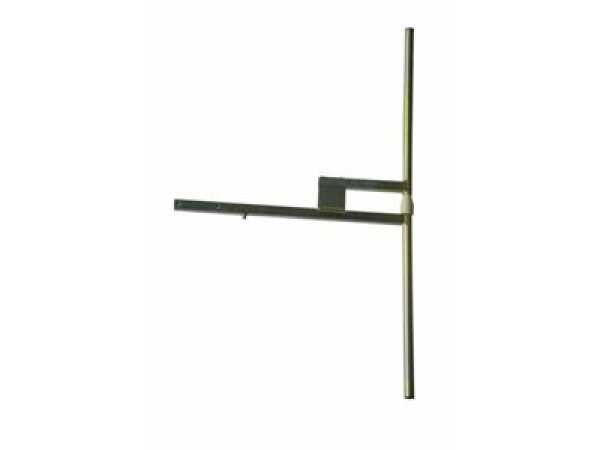

FM antenna Dipole – Omni directional
Eletec Broadcast sells a wide range of FM dipole antennas and accessories
Wide band dipole, hot dipped steel, PTFE insulator and stainless steel screw, robust and resistant. Used in any climatic condition, all the metal parts are electrically grounded. You can find it in more versions: (connector “N”) 800W, (connector “7/16”) 2KW, (connector “7/8”) 3 KW.
Specifications:
Freq. range: 87.5 – 108 MHz
Impedance: 50 Ohm
V.S.W.R. : <1.4:1
Gain: 2db
Connectors: N – 7/16 – 7/8
Weight: 7 Kg
Max power: 3 KW
Polarization: vertical
Dimensions: 1400x800x60 mm
