Broadcast 500W FM Transmitter



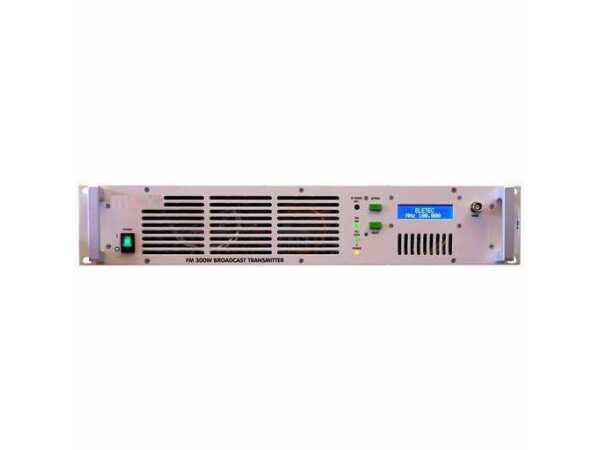

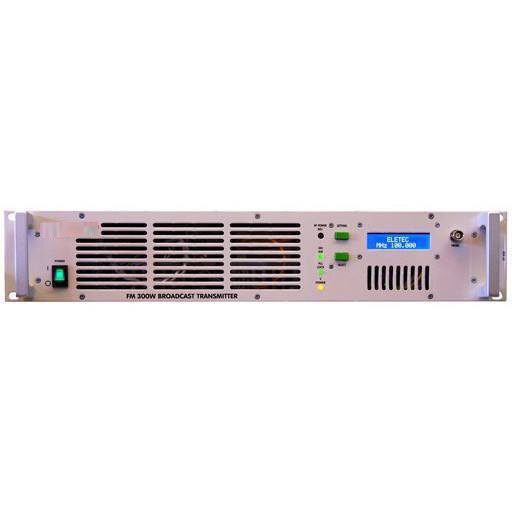

Compact Broadcast FM Transmitter mod. EA500S incl. Stereocoder

A perfect 500W Broadcast FM transmitter  for a small community radio station, religious radio or an exciter for a larger 5KW, 10KW or even 20KW FM amplifier. High performances frequency agile 87.5-108 MHz Broadcast Stereo FM transmitter, 0-500 W out adjustable, synthesized, agile frequency setting, excellent S/N ratio, SCA/RDS inputs, complete metering.
The new E500 are really innovative Broadcast FM Radio Transmitter exciter with 500W output power respectively, for these transmitter we have estimated a 20% longer MTBF. Thanks to the ultimate electronic components that have been largely implemented in the design.

500W FM Transmitter



Technical features:

Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)

Type: Full Solid State Mos-Fet-Wide Band

Modulation: FM

Emission Class: F3E

VCO Tuning: 25 MHz

Frequency Stability: ± 2.5 ppm

Synthesizer Step: 100 KHz (10 KHz on request)

Power Output: 0 ÷ 500 W (Typ. max 520W)

Spurious Emission: < – 80 dB or better

Harmonic Emission: < – 60 dB

Stereo Separation: > 55 dB @ 1 KHz

Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz

Base Band: 30 Hz ÷ 60 KHz within 0.15 dB

Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)

Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz

Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz

Pre-Emphasis: 50 or 75 μS int. selectable

RF Out Connector: N Female

MPX Input Connector: BNC-F

MPX Input Impedance: 2 KOhm

SCA Input Connector: 3 BNC-F

Protections: Overload, Temperature, VSWR in a fold-back reducing power

Cooling: Forced air

Op. Temperature Range: 0 ÷ +50 °C

Maximum Umidity: 90 %

AC Supply: 100 ÷ 240 VAC – 47 ÷ 63 Hz

Dimension: 2 unit rack 19″, 470 mm depth

AC Consumption: 770÷820 VAat full output power

Weight: 12 kg
