8-Bay Antenna for FM Transmitter (Including 8 pcs of 1-bay antenna + 8-way power divider)
Description
8-Bay Antenna for FM Transmitter (Including 8 pcs of 1-bay antenna + 8-way power divider)

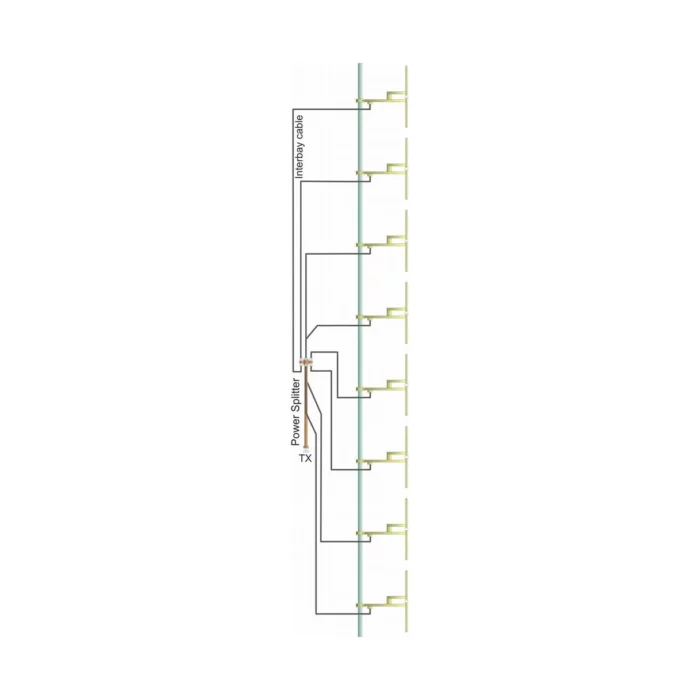

15000 W maximum power applied consists of: 8 coupling wide-band dipoles with brackets with Broadband splitter entry 1+5/8 and 8 output cables made out 7.16

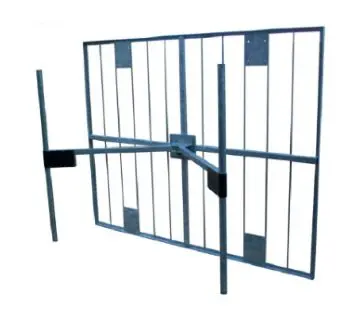

FM Dipole Antenna Systems at 8 bay, Wide Band, Stainless steel.
Configurations table of same antenna system examples , antenna numbers, cables type, power splitter connector In, working power and Gain.
Antennas: n°8
Splitters: n°1
Cables: n°8 1.2cc
Gain: 11 db
Max Power: 15 kW
Conn. In: 1+5/8
Shipping & Delivery
