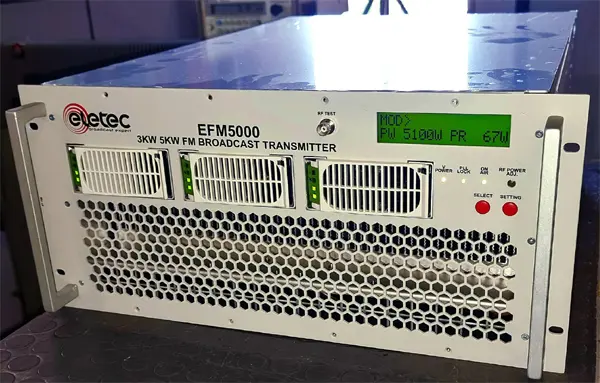

5 kW FM Modular Transmitter EFM5000

5000W Compact FM Transmitter

FM Compact Transmitters EFM5000 Series is a range of modular broadcast FM transmitters designed to operate in the whole 87.5 – 108 MHz frequency range for FM radio broadcasting, with power range 5000W

Superior audio quality and sound purity

The EFM5000 5kW FM transmitter is a compact and reliable solution for radio broadcasting

Designed for both professional, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install and use, making it an ideal choice for comercial radio stations

FM Broadcast Transmitter 5 kW

TECHNICAL SPECIFICATIONS

Rated Output Power: 10-5000 Watts continuously variable (ALC)
RF Output Connector: 7/8 EIA Flange
RF Output Impedance: 50 ohm
Frequency Range: 87.5 MHz to 108 MHz
Frequency Programmability: direct from front panel in 10 kHz increments
Frequency Stability: better than 5 ppm (± 500 Hz)
Modulation Type: direct carrier frequency modulation
Emission class: F3E
Spurious & Harmonic Suppression: < – 80 dB or better
Stereo Separation: 55 dB @ 1 Khz
Distortion: < 0.1 % (typ. 0.05 %)
Asynchronous AM S/N Ratio: 65 dB below reference carrier with 100%amplitude modulation at 400Hz
without de-emphasis, no FM modulation present
Synchronous AM S/N Ratio: 60 dB or better below reference carrier with 100% amplitude modulation at 400 Hz, without de-emphasis, FM modulation = ±75 kHz at 400 Hz
AC Power Requirement: 200-240 VAC, ±10%, 50-60 Hz, single phase (Internally Selectable)
Power Consumption: approx. 6500 W from AC
Panel Size: 483 mm (19″) W x 132 mm (7″) H (5 standard rack spaces high)
Overall Depth:  540 mm (21″)
Weight: 30 Kg
Ambient Temperature Range: 0° to 50° C (32° to 122° F)
Pre-emphasis: internally selectable

This transmitter can be ordered with the following options:

• Stereocoder,
• RDS Encoder
• LAN interface remote management over IP
