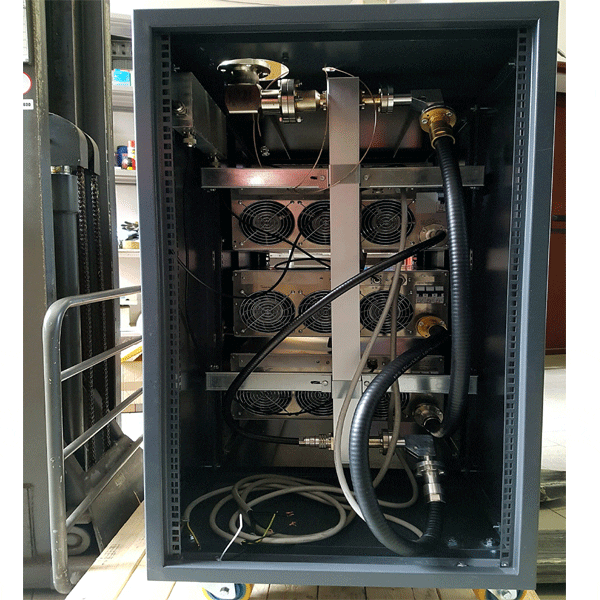

10kW FM broadcast radio transmitter range

10kW FM broadcast radio transmitter range

Frequency range:
Type of transistors:
Output RF connector:
Input RF connector:
IN/Output Impedance:
Harmonich suppression:
Power gain:
Residual asyncron AM:
Threshold of ROS by software:
Threshold of ROS fast hardware:
General stability of the output power:
Efficiency:
Permissible voltage variation:
Operating temperature range:
Permissible relative humidity:
Maximum installation height:
AC supply voltage:
Power ratio:
Delta temperature:
Redundance power supply:
Redundance cooling:
87.5 – 108 MHz
St Microelettronics SD2942
1 5/8”EIA
NF
50 ohm
> 72 dB
> 18dB
< 0,10%
11 %
11 %
/-0,1 dB
65% typ.
15%
0° to 45 °C
95% @ 35°C
3000m above mean sea level
380 V or 400 V 3 phases neutral wire
>0,9
< 15°C
yes
yes
More than 50 parameters shown on LCD display
Setting all parameters from the frontal panel via rotary
knob encoder and LCD display
