Description

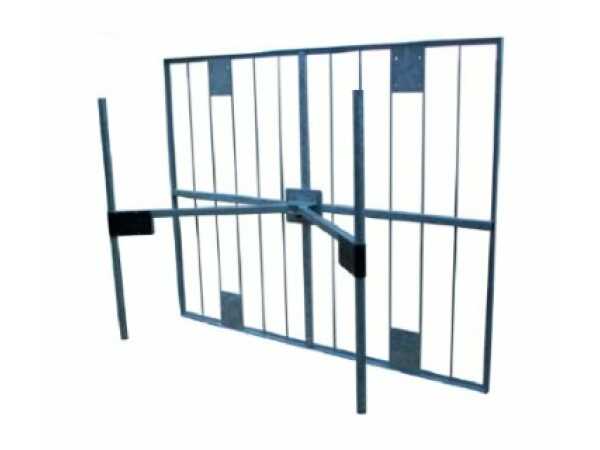

VHF FM Panel Antenna
WORKING BAND: 87.5÷108 MHz
- Panel antenna with double dipole and reflecting grid wholly in hot dip galvanized steel.
- Directional irradiation pattern.
- Suitable for stacked-array or 90°coupling FM antenna systems.
- Broadband 87.5 ÷ 108 MHz
-
- WORKING BAND: 87.5÷108 MHz
- BANDWIDTH: FM band
- GAIN: 7.5 dBd (9.7 dBi) mixed polarization
- VSWR: ≤ 1.16:1 (-22.6 dB)
- POLARIZATION: vertical (horizontal upon request)
- IMPEDANCE: 50 Ohm unbalanced
- HALF POWER BEAMWIDTH: E-Plane – 63° / H-Plane – 53°
- LIGHTNING PROTECTION: all metal parts DC grounded
