TV Transmitters Air Cooled
The air-cooled Transmitter family from 1W Transmitters to 40KW Transmitters with High Efficiency Wideband. Multistandard
Description
TV Transmitters Air Cooled
TV Transmitters
The air-cooled Transmitter family from 1W Transmitters to 40KW Transmitters with High Efficiency Wideband. Multistandard
The SLine is the air-cooled Transmitter family (2, 4 and 5 rack units amplifiers), equippable with High Efficiency Wideband.The amplifiers can be equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.Multistandard
High energy efficiency to minimize consumption
Fully frequency agile without need for any tuning or trimming;
Automatic digital static or adaptive Linear and Non-Linear Pre-correction;
Power Amplifiers with triple redundant Hot Plug-in power supplies;
Temperature-controlled fans for better efficiency and cooling system performance.
High energy efficiency to minimize consumption
Fully frequency agile without need for any tuning or trimming;
Automatic digital static or adaptive Linear and Non-Linear Pre-correction;
Power Amplifiers with triple redundant Hot Plug-in power supplies;
Temperature-controlled fans for better efficiency and cooling system performance.

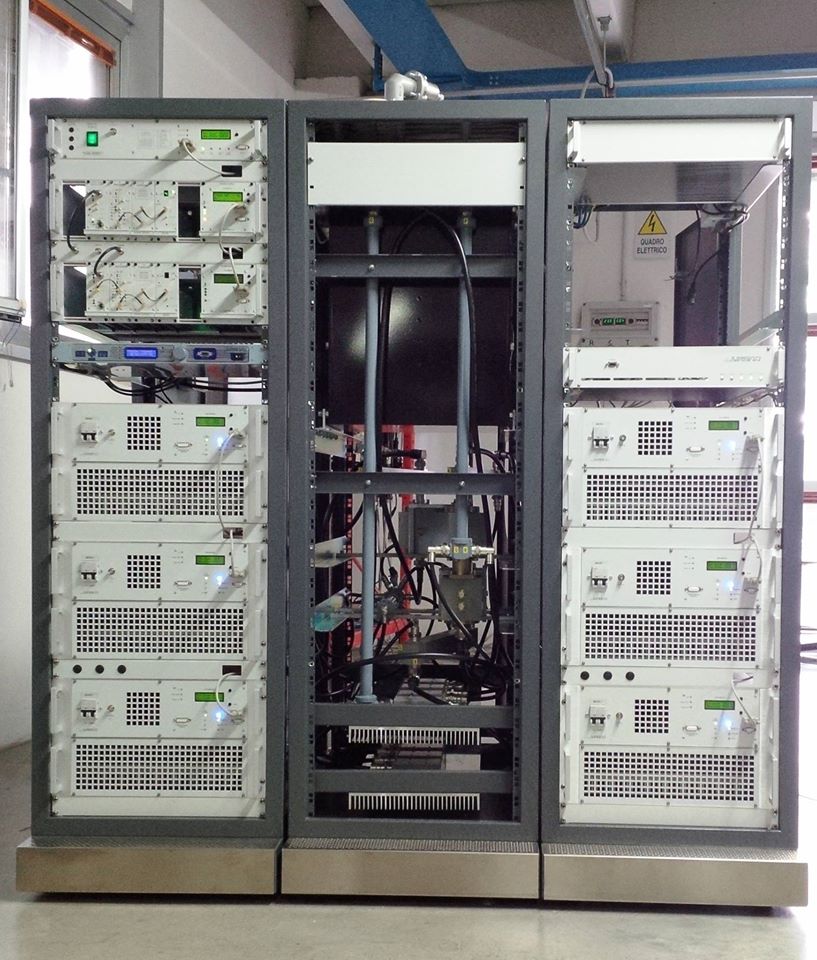

AIR Cooled TV transmitters
Fully wide band high efficiency with a system efficiency up to 50%.
Composed by one driver / Dual Driver Option and one amplifier.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is next generation of air cooled transmitters, available in band I, III and IV-V.
The Family is designed to be the most efficient, robust and high performance.
Composed by one driver / Dual Driver Option and one amplifier.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is next generation of air cooled transmitters, available in band I, III and IV-V.
The Family is designed to be the most efficient, robust and high performance.
- Multistandard
- 2x ASI with Hitless switch, 2x IP Ethernet, A/V for analog broadcasting.
- The most advanced manual, Automatic and Adaptive Linear and Non-Linear Pre-corrector.
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver
- USB input to fast save/load configurations.
- Amplifier equipped with No. 3 Pluggable power supplies
- RF Pallets with independent carrier mount, no re-adjustment needed.
- Highest performances in terms of MER, BER and shoulders.
- Independent temperature controlled low-noise fans.
- Use of tools is reduced almost to zero including pallets replacement.
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
