RF Amplifiers for FM – Medium Power

RF amplifiers for FM applications
On Sale for Commercial and Community Radio Stations
Output Power range: 500-2500 W

High Efficiency FM Amplifiers

Output Power Ranges from 500W to 2500W

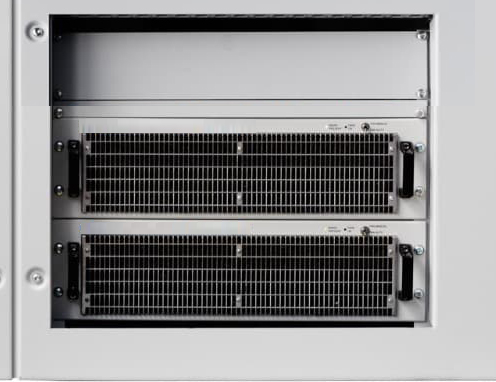

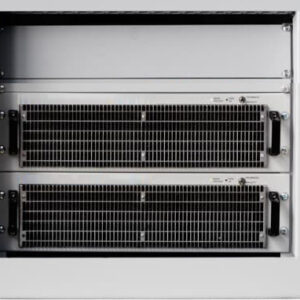

HOT PLUG-IN POWER SUPPLY

Replace the power supply in ONE MINUTE with 4 Steps:

• Remove the front panel
• Pull Off the sliding power supply
• Insert the new Power Supply
• Install the front pannel

When developing the ES Series, the main target was: Always on-Air, Less than 7 kg  of modules-weight, Easy maintenance, Low consumption and High Efficiency

• DIRECT ACCESS KEY TO MAIN COMMANDS
• SMART NAVIGATION KEYS WITH ESC COMMAND
• OVERALL SATUS SHOWN BY LEDS
• AIR FILTER STANDARD
• ANALOG AND DIGITAL READY FM AMPLIFIERS
• HD RADIO AND DRM COMPATIBILITY
• UP TO 80% OVERALL EFFICIENCY
• PLANAR ARCHITECTURE
• 65:1 VSWR TOLLERANT
• FULLY RF AND POWER SUPPLY REDUNDANT
• PLUG-IN POWER SUPPLY REPLACEABLE
• SENSE AMPLIFIERS NATURAL OUTCLASS GREEN TECHNOLOGIES
• HIGH EFFICIENCY LAST GENERATION LDMOS TECHNOLOGY UP TO 85%
• TOTAL SPECTRAL PURITY: > -100 DBC SPURIOUS, > – 84 DBC HARMONICS
• FULL RANGE POWER SUPPLY: 90-260 VAC MAINS VOLTAGE
• HIGHEST RF SIGNAL QUALITY
• REMOTE CONTROL BY TCP/IP: WEB + SNMP OF ALL SIGNAL PARAMETERS

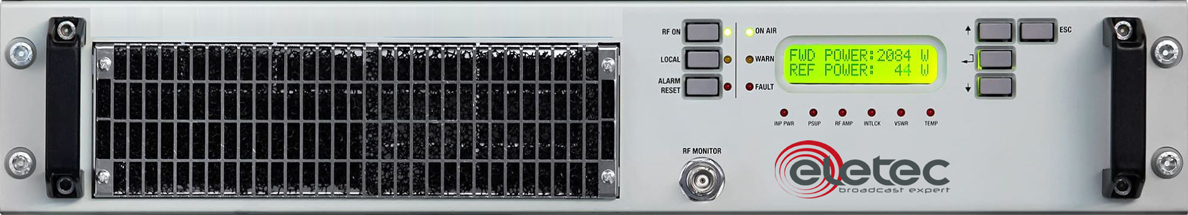

Output power 500W to 2500W using High Efficiency last LDMOS technology housed into an ultra-compact cabinet of only 2U height.

For any application: the ES Series is the ultimate solution that meets the most demanding customer requirements and guarantees professional features at an affordable price.
