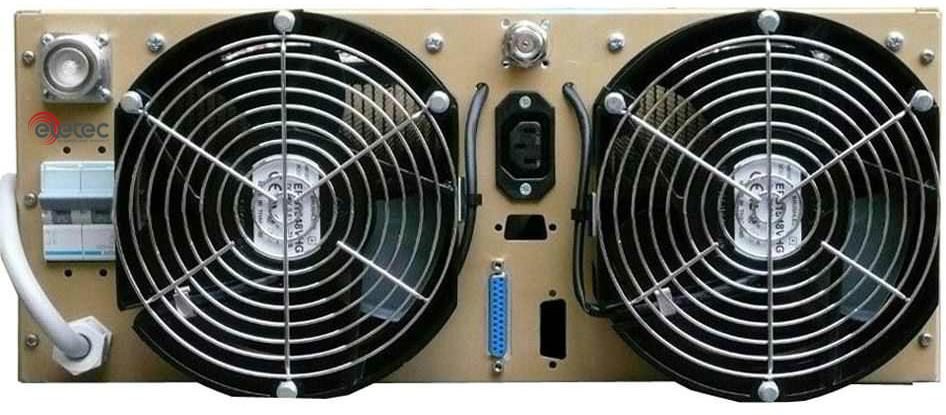

Broadcast 2 kW Broadband FM Amplifier

Power Amplifier FM 2kW

Category:

Description

Broadcast 2 kW Broadband FM Amplifier

SOLID STATE FM AMPLIFIER
87.5 – 108 MHz Range

  • HIGH PERFORMANCE
  • COMPLETELY BROADBAND
  • HIGH SPECTRAL PURITY
  • OUTPUT INTERFACE, DB9
  • VERY COMPACT CABINET RACK 19”
  • CCIR & FCC COMPLIANT

FREQUENCY RANGE: 87.5 ÷ 108 MHz
INPUT POWER: 25W nom./35W max.
OUTPUT POWER: 2KW
MONITOR ATTENUATION OUT: -54 dB Tip.
AM SIGNAL TO NOISE RATIO: -75 dB SYNC. AND ASYNCHRONOUS
INPUT/OUTPUT IMPEDANCE: 50 Ohm
INPUT CONNECTOR: N
OUTPUT CONNECTOR: 7/8″
RF MONITOR OUTPUT CONNECTOR: BNC
AC POWER MONO-PHASE: 190 ÷ 264 Vac 50/60 Hz
AC POWER THREE-PHASE: 340 ÷ 450 Vac 50/60 Hz
AC POWER CONSUMPTION: xxxx VA
MAX CURRENT AUX OUTLETS: 1A @ 230 VAC, no fuse
WORKING TEMPERATURE: 0 ÷ 35° C / -10 ÷ 45° C MAX
WEIGHT: xx kG
DIMENSION: 420wx 175hx 550 mm depth
