Low Power FM Transmitter

Available with RF nominal power of 20W, 30W, 50W, , 100W, 300W, 500W, 1000W.

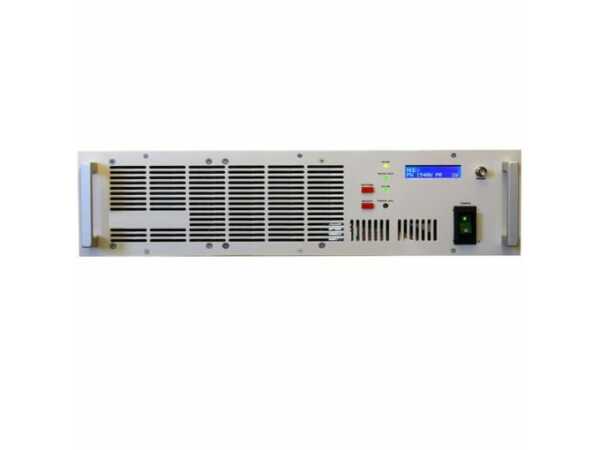

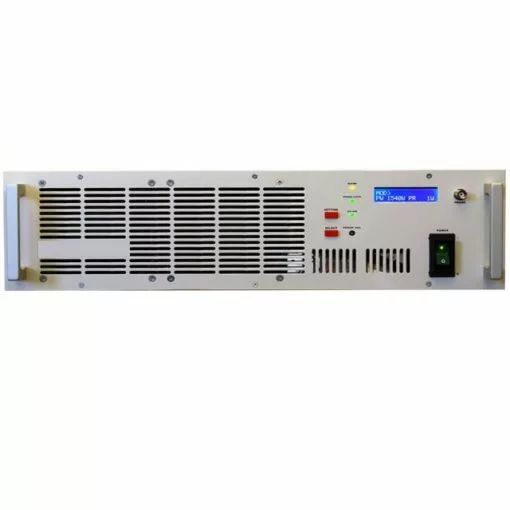

Broadcast FM Transmitter mod. FAL1000/LCD

• Compact 3HE
• Lower AC power consumption and Lower heating
• Top sound quality due to an FM signal generator having excellent signal/noise ratio and ultralow THD
• Full Broadband.
• The frequency can be easily changed in whole FM band
• Use of last generation LDMosFet’s for top-energy saving
• Dynamic protection of the power output which is automatically reduced to keep your station on the air
• Wide operating voltage range: 100-240V AC with high efficiency Power Supply
• Easy and intuitive way to change frequency under a password key
• Simple installation
• Simple setup
• High power device used in 1K model, planar technology line transformer with high efficiency

Technical features:

Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)

Type: Full Solid State Mos-Fet-Wide Band

Modulation: FM

Emission Class: F3E

VCO Tuning: 25 MHz

Frequency Stability: ± 2.5 ppm

Synthesizer Step: 100 KHz (10 KHz on request)

Power Output: 0 ÷ 1000 W

Spurious Emission: < – 80 dB or better

Harmonic Emission: < – 60 dB

Stereo Separation: > 55 dB @ 1 KHz

Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz

Base Band: 30 Hz ÷ 60 KHz within 0.15 dB

Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)

Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz

Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz

Pre-Emphasis: 50 or 75 μS int. selectable

RF Out Connector: 7/16″ Female

MPX Input Connector: BNC-F

MPX Input Impedance: 2 KOhm

SCA Input Connector: 3 BNC-F

Protections: Overload, Temperature, VSWR in a fold-back reducing power

Cooling: Forced air

Op. Temperature Range: 0 ÷ 50 °C

Maximum Umidity: 95 % non condensing

AC Supply: 110 ÷ 264 VAC – 47 ÷ 63 Hz

Dimension: 3 unit rack 19″, 530 mm depth

Weight: 18 kg
