HIGH POWER TV TRANSMITTERS

High Power Liquid Cooled Transmitter with Integrated Cooling System

The new DTVHP Series of High Power TV Transmitters is the ultimate in technology, quality and performance in the Broadcast market.

The new DTVHP transmitter family is a liquid-cooled technological platform capable of providing a DTV output signal up to 7kW (DVB-T / T2, ISDB-T / Tb) or 10kW (ISDBT). The Digital Exciter modulator board is based on the most advanced technologies – a FPGA (Fiel Programmable Gate Array) and Direct Digital Up-Conversion RF. Extremely compact and efficient equipment – both the transmitter and the cooling system are enclosed in a standard 19 ″ rack – with energy consumption that can be further optimized through the Doherty option.

The DTVHP uses the latest LDMOS technology and provides the necessary modulation in accordance with the required transmission standard. The modulation process is completely digital for both Audio and Video to provide high performance and stability, and includes Linear and Non-Linear precorrection.

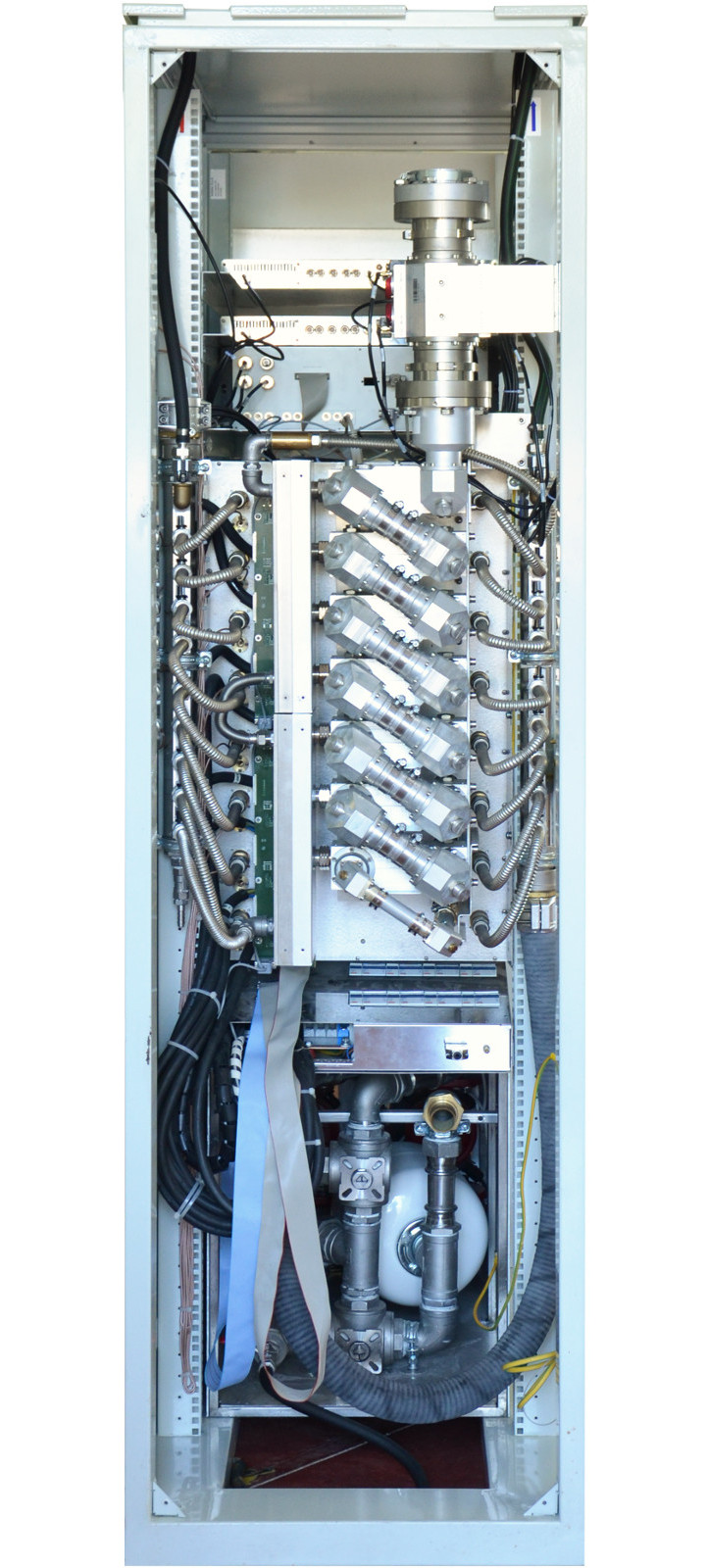

The platform includes a hydraulic cooling system that runs inside the amplifiers, powered by a double redundant hydraulic pump included in the rack. A system that allows to maintain stable operating temperatures even in the most difficult environmental conditions.

The DTVHP is equipped with a complete set of audio inputs and an internal GPS receiver (1pps and 10Mhz) for the necessary synchronization. An intuitive local interface displayed on the LCD display allows real-time monitoring and configuration of equipment parameters.

Remote control and monitoring options available.

High Power Liquid Cooled Transmitter with Integrated Cooling System

Main features

High efficiency, low energy consumption
Configurations: Stand Alone, Dual Drive, 1 + 1, N + 1 solutions.
Available in all analog standards (PAL SECAM NTSC) with high performance digital processing
Available in all digital standards
(DVB-T / T2, ISDB-T / Tb, ATSC) with adaptive precorrector
Available in band I – III – IV – V.
Liquid cooling system with redundant pump and temperature / flow control
Anti-condensation protection
High efficiency heat exchange (Δt <6 °)
Air detector in the hydraulic system
Pluggable hot-swap amps
RF signal combiner with low signal loss
Liquid cooled unbalance load
High efficiency adaptive precorrector
IP-to-ASI input (optional)
Quick installation (4 man-hours)
Low acoustic noise, <55dbA
Web server, SNMP protocol

Main Characteristics High efficiency, low power consumption- Configurations: Stand Alone, 1+1, N+1 up to 7+1- Available in all analogue standards ( PAL, SECAM, NTSC ) with digital processing for high performances – Available in all digital standards (DVB-T/T2, ISDB-T/Tb, ATSC ) – Available in band III – IV – V.- Integrated cooling system with redundancy dual pump and temperature flow control- Anti-Condensation protection system- High Efficiency Heat exchange (Δt<6°)- Air detector in the hydraulic system- Hot swap pluggable RF power amplifiers- Low insertion loss output RF combiner- Liquid Cooled Unbalance Dummy Load- Hi efficiency adaptive precorrector- IP-to-ASI input optional- Quick installation (4 man-hours)- Low acoustic noise, <55dbA- WEB server SNMP
