FM Broadcast Panel Antenna

FM Broadcast Panel Antenna

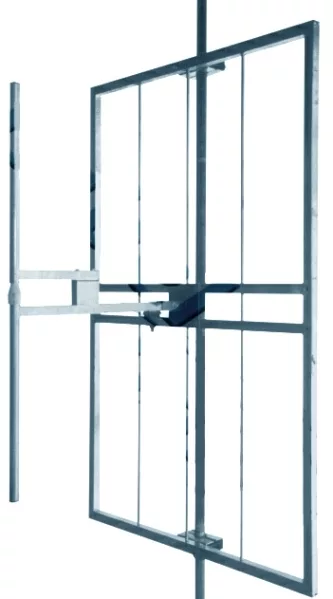

FM panel antenna, entiely made of hot dipped steel, PTFE insulator and stainless steel screw. The reflector is made of one peace. You can find it also in these versions:  (connector “N”), (connector “7/16”),  (connector “7/8”).

Specifications:
Freq. range: 87.5 – 108 MHz
Impedance: 50 Ohm
V.S.W.R. : <1.4:1
Gain: 6 db
Connectors: “N” – “7/16” – “7/8”
Weight: 27 Kg
Max power: 2 KW
Polarization: vertical
Dimensions: 2000x1280x85 mm
