3000 Watt FM Transmitter
FM Modular Transmitter
Related products
Broadcast Low-Power 30W FM Exciter
30W Professional FM Radio Transmitter
30W exciter fm transmitter mono/Mpx or stereo is the ideal choice for the low-power broadcaster
30 W FM Mono / MPX / Stereo Transmitter
Start FM transmitting quickly with the Eletec E30 30 Watt FM transmitter
The E30 30 Watt FM transmitter is a compact and reliable solution for radio broadcasting
Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install, making it an ideal choice for community radios
This 30W FM Exciter/Transmitter can be ordered with the following options:
- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
Broadcast Low-Power 150W FM Exciter Transmitter
150W FM Transmitter
150 W FM Mono / MPX / Stereo Transmitter
Start FM transmitting quickly with the Eletec 150 150 Watt FM transmitter
The E150 150 Watt FM transmitter is a compact and reliable solution for radio broadcasting
Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install, making it an ideal choice for community radios
This 150W FM Transmitter transmitter can be ordered with the following options:
- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
Eletec Broadcast low power 150W FM Exciter Transmitter with Mono and MPX input.
For stereo broadcasting this exciter works perfect with the TITAN FM Broadcast Audio Processor
Broadcast FM Transmitter – E600 – Mono, MPX
BROADCAST FM TRANSMITTER - 600 - Mono, MPX
600 W FM Transmitter / Exciter
A perfect 600W Broadcast FM transmitter exciter for a small community radio station, religious radio. High performances frequency agile 87.5-108 MHz Broadcast Stereo FM transmitter, 0-600 W out adjustable, synthesized, agile frequency setting, excellent S/N ratio, SCA/RDS inputs, complete metering. The new E600 are really innovative Broadcast FM Radio Transmitter exciter with 600W output power respectively, for these transmitter we have estimated a 20% longer MTBF. Thanks to the ultimate electronic components that have been largely implemented in the design. 600 watts fm broadcast exciter transmitter 600 W FM Mono / MPX / Stereo Transmitter Start FM transmitting quickly with the Eletec E600 600 Watt FM transmitter The E600 600 Watt FM transmitter is a compact and reliable solution for radio broadcasting Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range. This transmitter is easy to install, making it an ideal choice for community radios This 600W FM Transmitter transmitter can be ordered with the following options:- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
1kW FM Modular Transmitter 1000 Watt
1kW FM Modular Transmitter 1000 Watt F1000/E
Technical features:
Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)
Type: Full Solid State Mos-Fet-Wide Band
Modulation: FM
Emission Class: F3E
VCO Tuning: 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step: 100 KHz (10 KHz on request)
Power Output: 0 ÷ 1000 W
Spurious Emission: < - 80 dB or better
Harmonic Emission: < - 60 dB
Stereo Separation: > 55 dB @ 1 KHz
Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector: 7/16" Female
MPX Input Connector: BNC-F
MPX Input Impedance: 2 KOhm
SCA Input Connector: 3 BNC-F
Protections: Overload, Temperature, VSWR in a fold-back reducing power
Cooling: Forced air
Op. Temperature Range: 0 ÷ 50 °C
Maximum Umidity: 95 % non condensing
AC Supply: 110 ÷ 264 VAC - 47 ÷ 63 Hz
Dimension: 3 unit rack 19", 530 mm depth
Weight: 18 kg

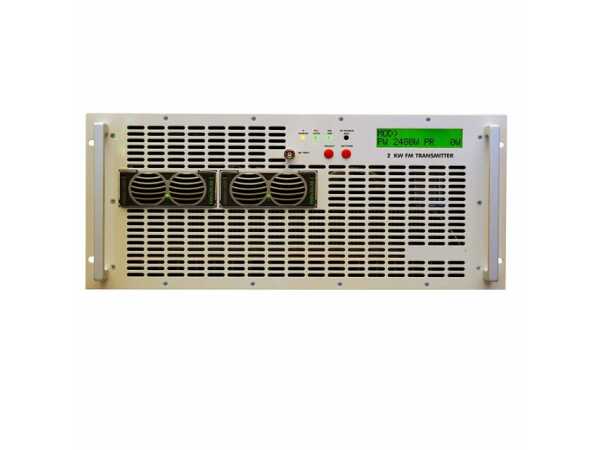

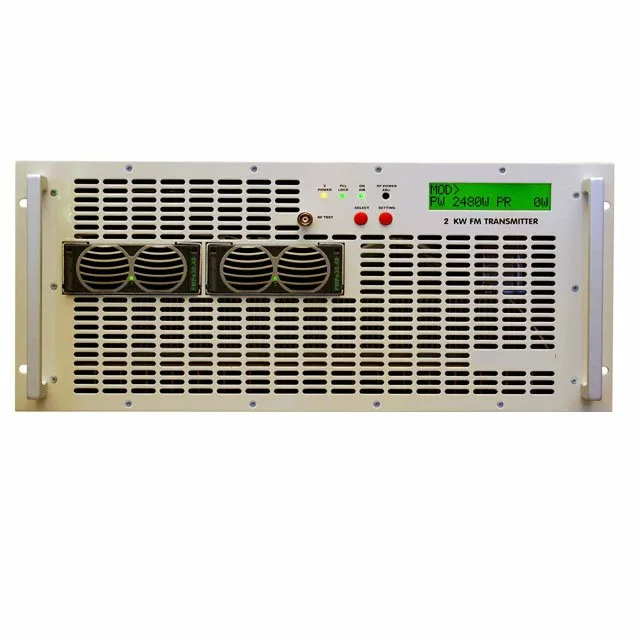

2 kW Solid State FM Transmitter
FAL2000 2KW is a power efficient FM broadcast transmitter with 2000 watt output power that gives you a reliable fm transmitter for your radio station. Build in stereo generator and optional RDS encoder and remote control. 2kW FM Stereo/Mono/MPX/Transmitter . 2,000 WATTS COMPACT FM SOLID STATE TRANSMITTER. The Broadcast Eletec FAL2000 is the most compact size 87.5-108 MHz 2kW FM Transmitter, high efficiency, solid state FM transmitter of 2000W rated power. With advanced self protection and LCD digital front panel control features., the FAL2000 is a 19" rack mount FM Transmitter, with last transistor technology..
2.5kW Transmitter/Exciter
2.5kW Radio Transmitter / Exciter
2500W FM Transmitter Start FM transmitting quickly with the Eletec 100 100 Watt FM transmitter The FM2500 2500 Watt FM transmitter is a compact and reliable solution for radio broadcasting Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range. This transmitter is easy to install, making it an ideal choice for community radios This 2500W FM Transmitter transmitter can be ordered with the following options:- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
