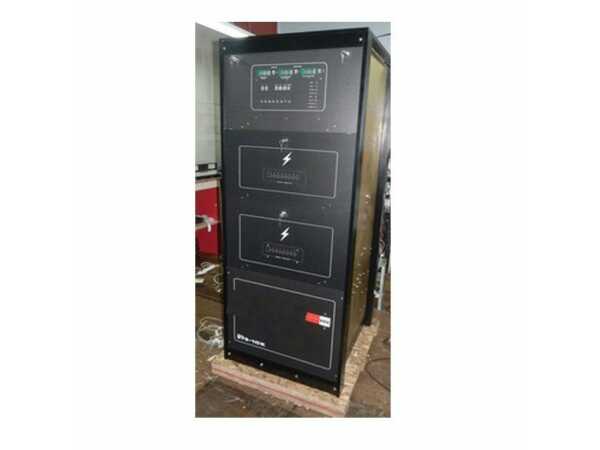

10 kW Solid State AM Transmitter
10 kW AM Transmitter, High power, solid state transmitters for AM radio broadcast
Compact Cabinet Steel 100% Solid State MOSFET Technology Modulation PDM Modular Architecture Power Modules connected PLUG-IN Power Modules 16 of 1,000 watts C / U Protections of all its parts with fault signaling
Description
10 kW Solid State AM Transmitter
10 kW AM Transmitter, High power, solid state transmitters for AM radio broadcast
Compact Cabinet Steel 100% Solid State MOSFET Technology Modulation PDM Modular Architecture Power Modules connected PLUG-IN Power Modules 16 of 1,000 watts C / U Protections of all its parts with fault signaling. Output tank Lightning, lightning. Capacity 140% modulation in the positive peek. High efficiency, typically 80% or better. Excellent modulation characteristics and low distortion. Power control in 3 levels from the front panel. Measurement System Voltage, Current and Power, through Digital instruments. Temperature compensated oscillator. Automatic replenishment from the studios. Local Operating System and Remote. System forced air ventilation. Power supply single or three phase 220/380 vac Frequency Range any channel within the band of 530 Khz to 1700 Khz

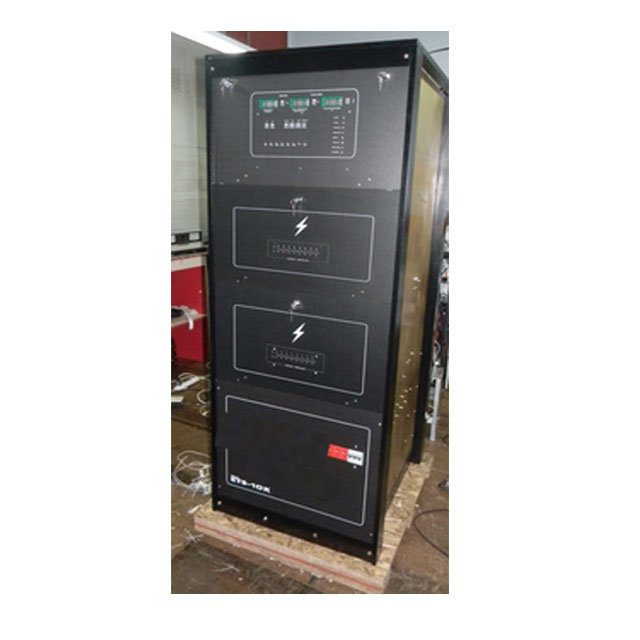

10 KW Solid State AM Transmitter
AM Transmitter Solid State 10.000 watts
Shipping & Delivery
Related products
TRANSMITTER AM COMPACT 1000
1kW AM Transmitter
Output Power 1000 nominal watts Load Impedance 50 Ohms unbalanced Frequency response +/- 0.5 dB between 40 Hz and 10 Khz Harmonic Distortion less than 1.5% at 90% modulation, measured between 40Hz and 10Khz Modulation Capacity Better than 140% at positive peak at 100% of Nominal Power Carrier Amplitude Shift Less than 1% Radiation of Harmonic and Spiral Signals Better than 75 dB below the carrier level Residual Noise Better than 65 dB Frequency Stability +/- 5 Hz or better Audio Input Level + 10 dBm nominal for 100% modulation Supply Voltage 110 VAC / 220 VAC with taps of +/- 5% and 10% 1 phase Power Consumption Typical efficiency of 80% for 100% of rated carrier power Operating Conditions Ambient temperature - 5ºC and 40ºC Relative humidity between 0% and 90%. Altitude between 0 and 3500 meters above sea level Size and Weight 80 Kgr. Height 84cm, Depth 60cm, Width 60cm
