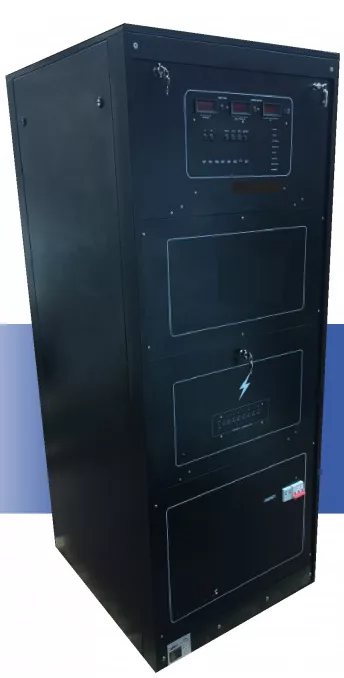

AM Solid State Transmitter 5,000 watts

5 kW AM Transmitter, High power, solid state transmitters for AM radio broadcast

5kW AM Transmitter

Category:

Description

AM Solid State Transmitter 5,000 watts

5 kW AM Transmitter, High power, solid state transmitters for AM radio broadcast

5kW AM Transmitter
Compact Cabinet Steel
100% Solid State MOSFET Tecnology
Modulation PDM
Modular Architecture
Power Modules connected PLUG-IN
8 Modules Power of 1,000 watts C / U
Protections of all its parts with fault signaling.
Output tank Lightning, lightning
Capacity 140% modulation in the positive peek.
High efficiency, typically 80% or better.
Excellent modulation characteristics and low distortion.
Power control in 3 levels from the front panel.
Measurement System Voltage, Current and Power, through
Digital instruments.
Temperature compensated oscillator.
Automatic replenishment from the studios.
Local Operating System and Remote.
System forced air ventilation.
Power supply single or three phase 220/380 vac
Frequency Range any channel within the band of 530 Khz to 1700 Khz


AM Solid State Transmitter 5,000 watts
