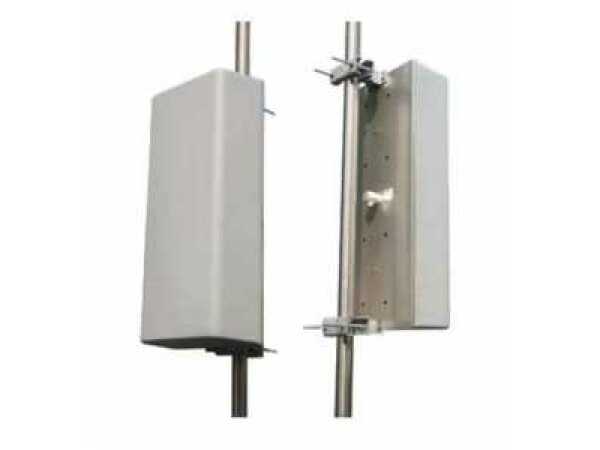

TV UHF Antenna Panel
TV UHF Antenna Panel 8 elements, on request we make it for vertical or horizontal polarization. Mounted on the 4 faces of a tower, it determines a radiations diagram almost omnidirectional
Description
UHF 470-860MHz panel antenna with radome
TV UHF Antenna Panel 8 elements, on request we make it for vertical or horizontal polarization.
Mounted on the 4 faces of a tower, it determines a radiations diagram almost omnidirectional
Specifications:Freq. range : 470-860MHzImpedance: 50 OhmV.S.W.R. : < 1.4:1Gain: 11 dbdConnectors : N – 7/16 – 7/8Weight: 10 KgMax power: 2 KWPolarization: vertical/horizontal
Dimensions: 1055x448x236 mm
