TV panel Antenna, band III 174-225MHz

Description

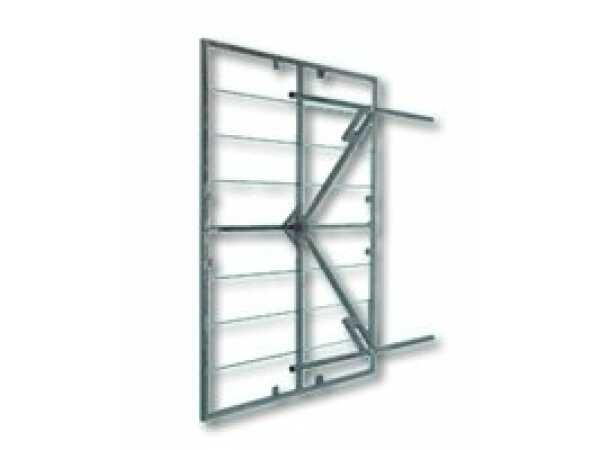

TV panel Antenna, band III 174-225MHz


Antenna of great strenght, with stainless steel dipole and hot dipped steel reflector, PTFE insulator and stainless steel screw. Suitable for high power systems with horizontal or vertical polarization. Mounted on the 4 faces of a tower, it determines a radiation diagram almost omnidirectional.



Specifications:Freq. range : 174-225MHz
Impedance: 50 Ohm
V.S.W.R. : < 1.4:1
Gain: 7.5 dbd
Connector : “7/16”
Weight: 25 Kg
Max power: 2 KW
Polarization: vertical/horizontal
Dimensions: 1250x870x400 mm
