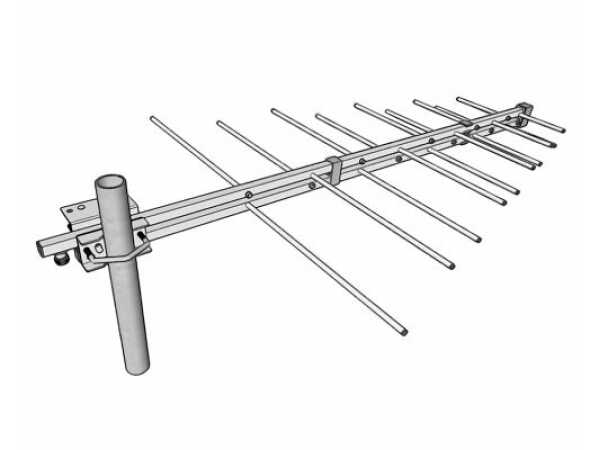

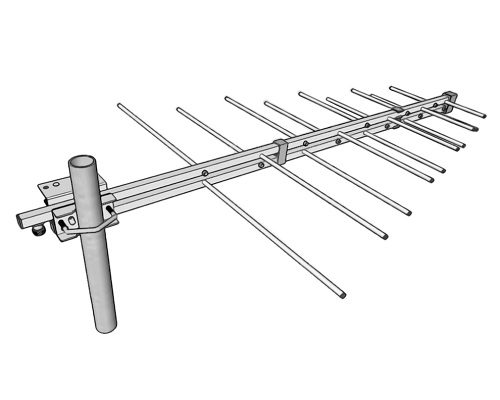

RADIO LINK LOG ANTENNA 230÷470MHz

RADIO LINK LOG ANTENNA 230÷470MHz

Frequency: 230 ÷ 470MHz

Impedance: 50 ohms

VSWR: <1.7

Gain: 8dBi

Front to back ratio: > 20dB

Polarisation: Vertical or Horizontal

Shock Protection: All parts direct earth grounded

RF Power: 30W

Connector: NF

Material: Aluminium

Number of elements: 10 all removable

Length: 1050mm

Width: 660 mm

Weight: 1,2 Kg

Wind resistance: 130 Km / h
