OXYGEN 1000 Digital broadcast console

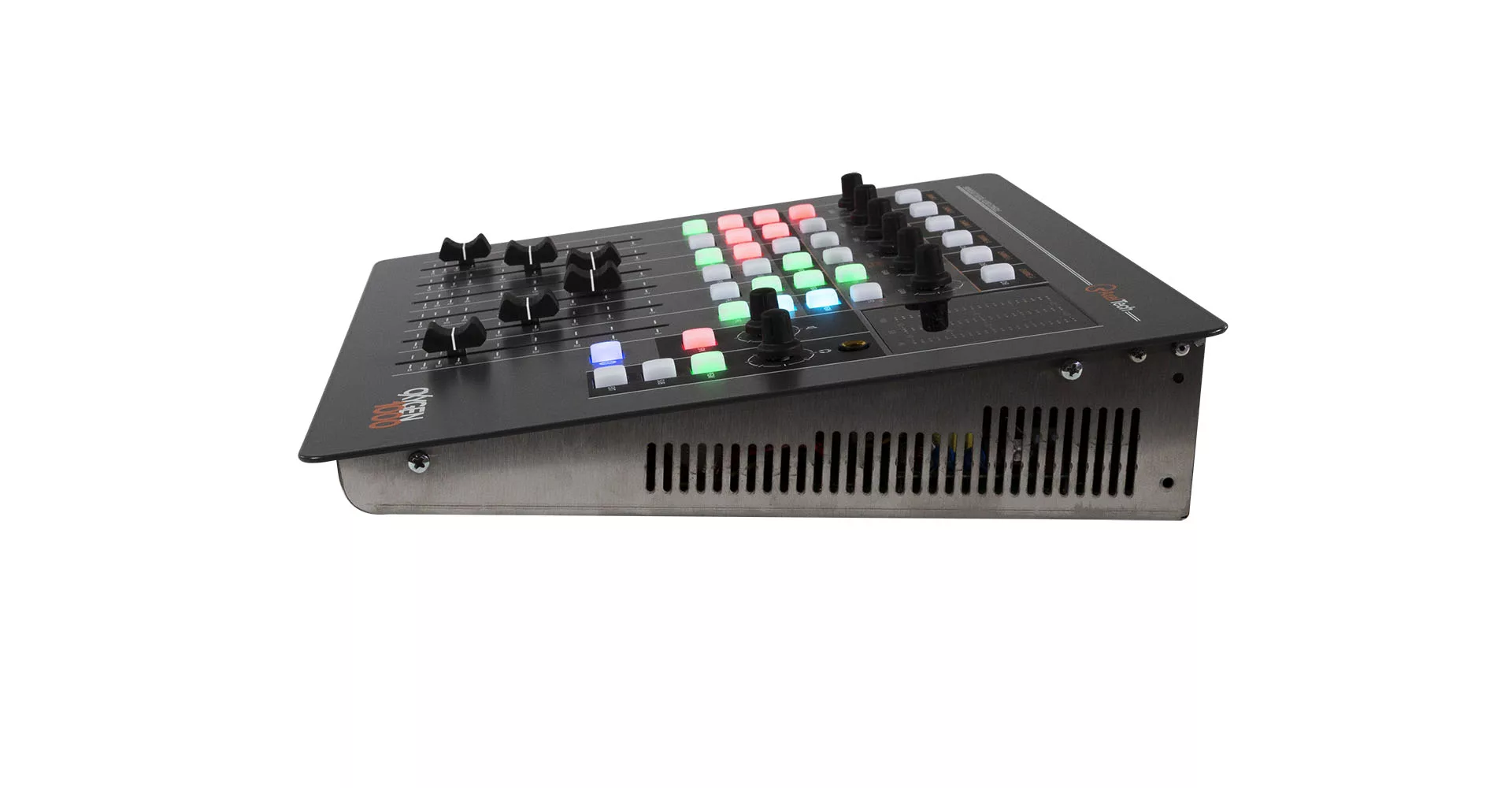

Oxygene 1000 is a fully Digital Broadcast Console designed for On Air and Production in any Radio Station: a compact 6 faders unit, with a powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis.
Oxygene 1000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility.

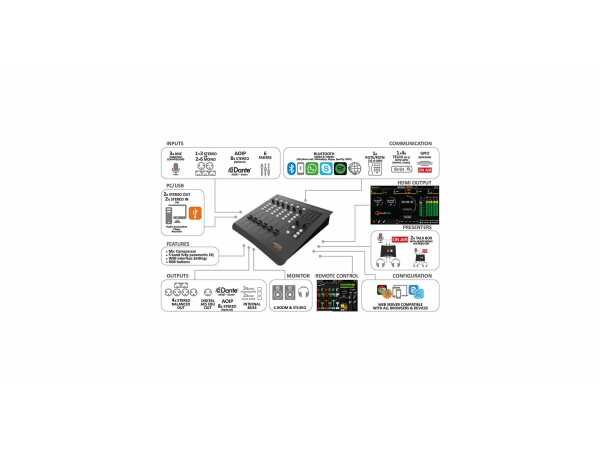

Reliable and easy to use as an analogue mixing console Oxygen 1000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante AoIP, Telco, Presenter Talk Box.
Oxygene 1000 can be remotely controlled through a dedicated application.
Analog Balanced Microphone Inputs
Connector
RJ45 & XLR Balanced – EMI Suppressed
Input Impedance
2,4 KΩ
Nominal Input Level (sensitivity)
-9/-66 dBu
Max Input Level (clipping point)
+9 dBu
A/D conversion
24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)
>90 dB
THD+N
<0,01% Analog Gain Adjustable +0 ÷ +57 dB (3dB step) Phantom Power +48V Analog Balanced Stereo Inputs Connector XLR & RJ45 Balanced – EMI Suppressed Input Impedance 10 KΩ Nominal Input Level (sensitivity) 0 dBu Max Input Level (clipping point) +18 dBu A/D conversion 24 bit / 48 Khz Frequency response +/-0,5 dB from 20 Hz to 20 kHz Signal To Noise Ratio (referred to peak level) >100 dB
Stereo Separation (referred to peak level)
>90 dB
THD+N
<0,002 % Analog Balanced Telco Input Connector RJ45 Balanced – EMI Suppressed Input Impedance 10 KΩ Nominal Input Level (sensitivity) 0 dBu Max Input Level (clipping point) +18 dBu A/D conversion 24 bit / 48 Khz Signal To Noise Ratio (referred to peak level) >100 dB
THD+N
<0,002% PSTN Interface Connector RJ11 Transhybrid loss >20 dB
Analog Balanced Stereo Outputs
Connector
RJ45 Balanced – EMI Suppressed
Output Impedance
23 Ω, nominal 600 Ω
Nominal Output Level
0 dBu
Max Output Level (clipping point)
+18 dBu
D/A conversion
24 bit / 48 Khz
Signal To Noise Ratio (referred to peak level)
>100 dB
Stereo Separation (referred to peak level)
>90 dB
THD+N
<0,002 % USB Audio Digital I/O Connector USB Type B – EMI Suppressed Playback And Recording Sample Rate SRC 44.1-48 KHz Resolution 16 bit Available Stereo Channels 1 Play & 1 Rec for each USB interface Digital Output Connector Balanced on 1 XLR – EMI Suppressed Input Impedance 110 Ω Standard AES3 Audio Sample Rate 48 KHz Resolution 24 bit Dynamic Range (Converter Values) 124 dB Analog Balanced Telco Output Connector RJ45 Balanced – EMI Suppressed Output Impedance 23 Ω, nominal 600 Ω Nominal Output Level 0 dBu Max Output Level (clipping point) +18 dBu D/A conversion 24 bit / 48 Khz Signal To Noise Ratio (referred to peak level) >100 dB
THD+N
<0,002 %
System
Audio Core
Analog Devices ADAU1452 32bit 294 MHz fixed point DSP
Audio CODECs
Cirrus CS42448 24 bit/192 kHz
System Core
Allwinner A20 dual core cortex-A7 at 800MHz, 1GB RAM
LAN Connection
RJ45 – 100Mbit
Nominal Delay (analog input to analog output)
0,7 ms
GPIO Inputs/Outputs
4 GPI/4 GPO on DB9; 4 GPI/2 GPO on Mic2 & Mic3 RJ45; 2 GPO on Out3 & Out4 RJ45; 1 GPI/1 GPO on Telco RJ45
Communication Port
2xUSB type-A, 2xUSB type-B , 1xLAN, 1xHDMI
Operating Temperature
0°C ÷ 40°C
PSU
Power Supply
90-260 VAC / 47-63 Hz / 30 W
Dimensions
Dimensions (W; H; D)
344mm; 80mm; 343mm
Weight
< 5Kg
