FM Transposer 87,5 – 108 MHz

Description

FM Transposer

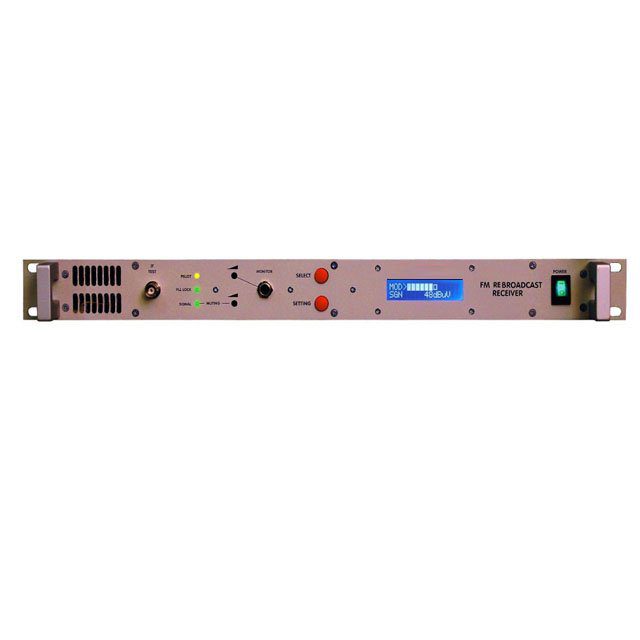

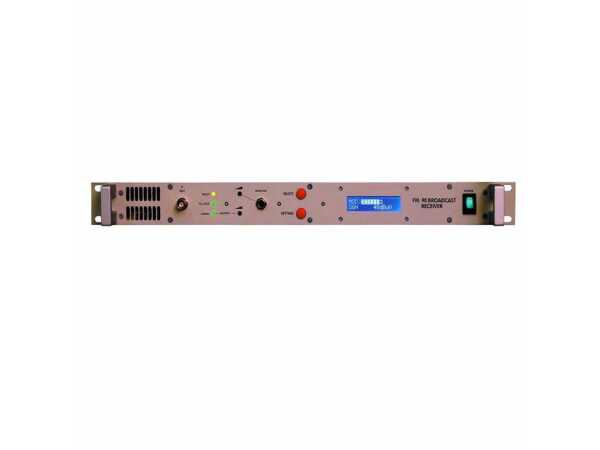

The Stereo rebroadcast Receiver offers state-of-the-art performance for FM reception quality. With its high sensitivity and large signal capability, the model is well suited even for harsh environments

FM Receiver for rebroadcast applications

Great performance in presence of strong electromagnetic fields

Band pass filter included

Front Panel IF monitoring

All Functions via LCD

Optional Remote Control Software

TECHNICAL SPECIFICATIONS

Frequency Range:  87.5 –108 Mhz
Modulation: FM Class F3
VCO Spectrum tuning: > 25 Mhz
Channel Spacing: 10 Khz
Tuning: Synthesized PLL
Frequency Stability: <2 ppm from -5° to 50° C ( 23° to 122° F)
RF input connector: “ N “ type
RF input impedance: 50 Ohms
Maximum RF input Signal: 0 dBm
Muting level selectable: – 100 dBm to 0 dBm (- 70 dBm standard)
IF Frequency: 10.7 Mhz
Sensitivity: 100 uV for a >68dB S/N; 10 uV for a >55 dB S/N
Selectivity: 40 dB @ ± 600 Khz
Base band: 25 Hz – 60 Khz @ ± 0.5 dB
S/N Ratio ( Stereo demod.): > 65 dB @ ± 75 Khz
Image frequency rejection (tuner filter): > 80 dB
2nd Adjacent channel rejection: 50 dB
MPX OPERATION
Output Connectors: BNC
Amplitude response: ± 0.07 dB (20 Hz- 60 Khz ; ± 0.5 dB ( 60 Khz – 75 Khz)
Stereo crosstalk: >40 dB
Total harmonic distortion: < 0.2 % @ ± 75 Khz
Earphone Impedance: 10 Kohms
GENERAL CHARACTERISTICS
Temperature Range -5° to 50° C (23° to 122° F)
Power Supply 240 VAC
Power consumption 50 W from AC
Dimensions 483 mm (19”) x 44 mm (1.74 “) x 365 mm ( 14-1/2” )
Packaged Weight 4 Kg ( 9 lbs)
