FM Directive Antenna – EP3
Description

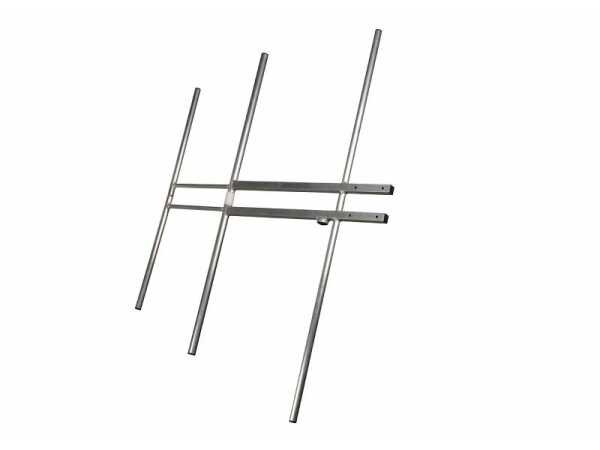

FM Directive Antenna – EP3
Broadband FM Directional Antenna / 3 elements Yagi 87.5- 108 Mhz
– Linear Polarization 3-element
– Broadband: Suitable for single channel or broadband operations with multi-channel combiners.
– Easy Installation: The standard mounting brackets are designed for instant installation on poles with diameters from 32 to 90 mm. Special brackets are available upon request.
– Water, icing, moisture protection: The input connector is protected against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing.
– State of the art mechanical design: By employing the finest materials (stainless steel, non-corrosive aluminium alloy, marine brass, virgin PTFE) it is assured a longer life service.
– Lightning resistance: is assured by the DC ground potential of the entire antenna.
Anticorodal 3-elements Yagi, 87.5-108 MHz broadband, 5.2 dBd gain. N connector. Mounting clamps and anodized aluminium accessories.
Shipping & Delivery
Related products

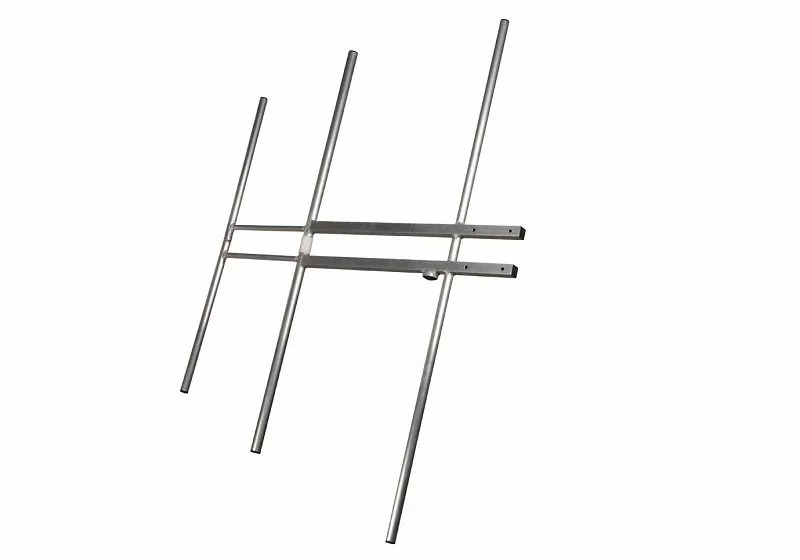

YAGI BROADBAND ANTENNA FM BROADCAST
Designed to be the TOP choice when you need to focus your signal in a particular direction using a high power antenna, the yagi 3 Broadcast with 3KW maximum capacity with 7/8 ″ connector offers up to 5dB of direct gain.
High-grade construction and DC short circuit protection will provide peace of mind to stations that want to stay on the air without tuning or adjusting for any frequencies through the FM band, allowing this antenna to be used with any frequency transmitter
BROADBAND LOGARITHMIC ANTENNA FM BROADCAST
5-element FM directional logarithmic antenna with a maximum capacity of 800W and N-type connector, totally made of Alodina treated with aluminum with stainless steel clamps and screws. They perform excellent gain and a radiation pattern without secondary lobes. All metal parts are grounded to avoid potential lightning problems.
