Band III VHF Broadband dipole, 7/8 type connector
Description
Band III VHF Broadband dipole, 7/8 type connector
- Suitable for Digital Audio Broadcasting.
- Broadband 174 ÷ 230 MHz.
- 7.5 dB gain.
- Each antenna is sealed and pressurizable.
- Input connector is nickel plated.
- Internal lines are made of silver plated brass.
- These panels can be used in vertical polarization or horizontal polarization to setup systems having directive, semi-directive and omnidirectional diagrams.
- Systems made up with these panels can be designed on customer specifications.
| ELECTRICAL DATA | |
| Frequency range | 175÷230 MHz |
| Impedance | 50 Ohm |
| Connectors | 7/8 EIA or 7/16” |
| Max Power | 2 Kw with 7/8” EIA flange |
| VSWR | ≤ 1.3:1 |
| Polarization | Vertical or horizontal |
| Gain | 7.4 dB |
| Half Power Beamwidth | E-Plane: ±28° H-Plane: ±28° |
| Lightning protection | All metal parts DC grounded |
| MECHANICAL DATA | |
| Dimensions | 1250x873x535 |
| Weight | 26 kg approx. |
| Wind load at 160 kmh | Frontalal 527 N Lateral 76 N |
| Max wind velocity survival | 180 km/h |
| Materials | Reflector: hot dip galvanized Dipole. Stainless steel Internal parts: passivated alluminum |
| Mounting | With special pipe clamps 50¸110 mm dia. |
Shipping & Delivery
Related products

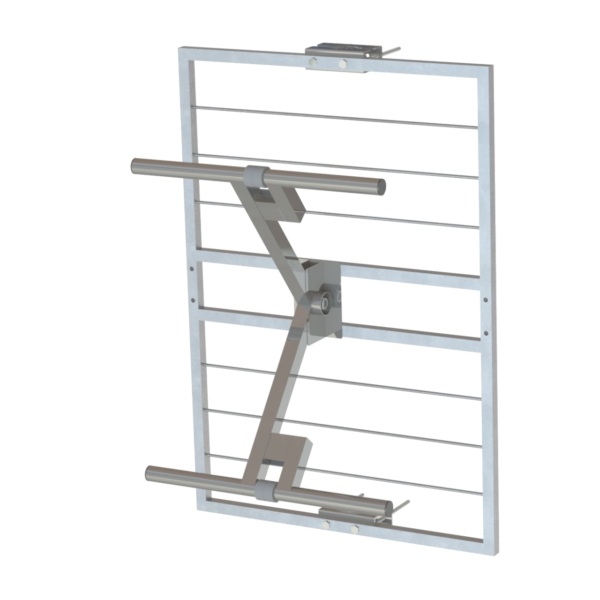

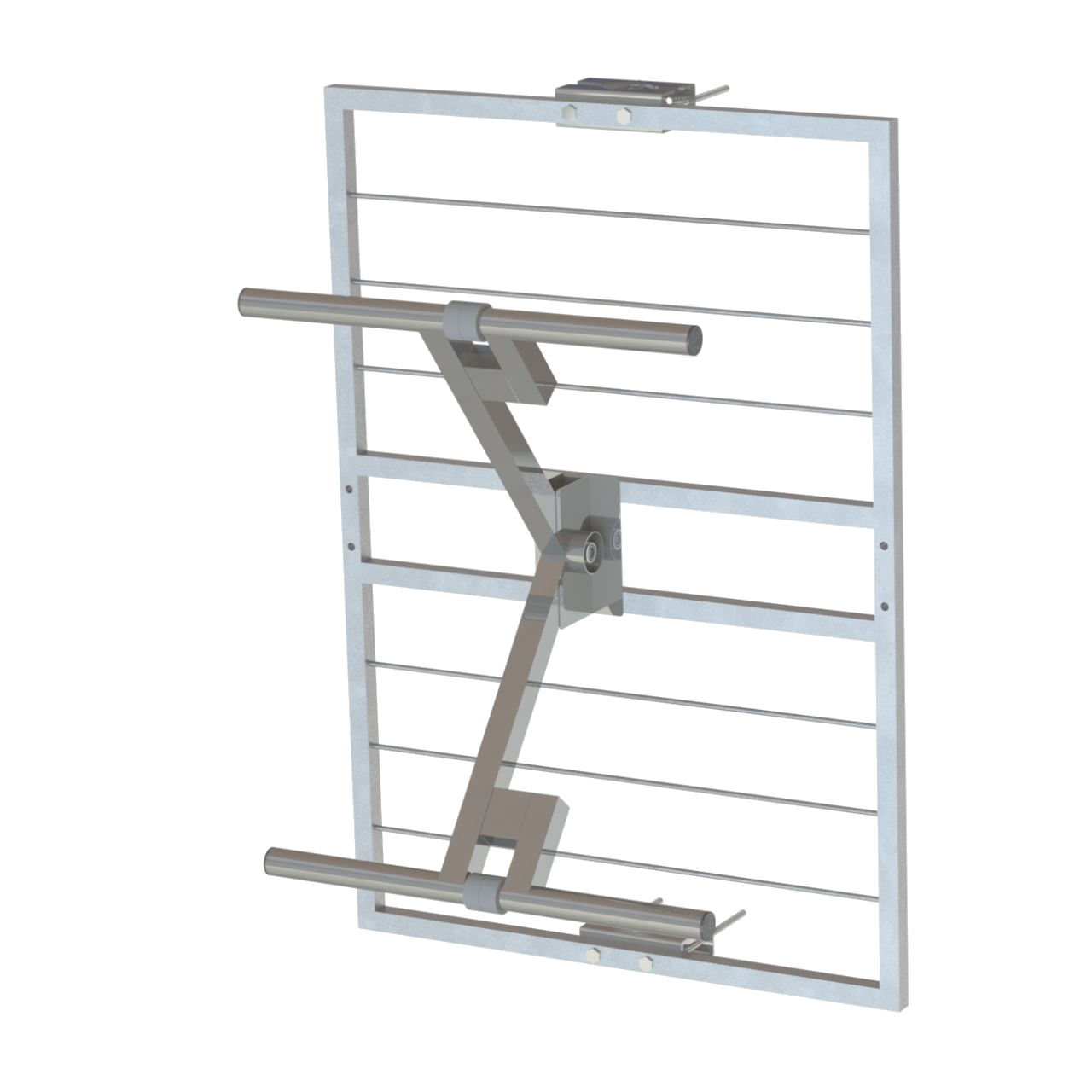

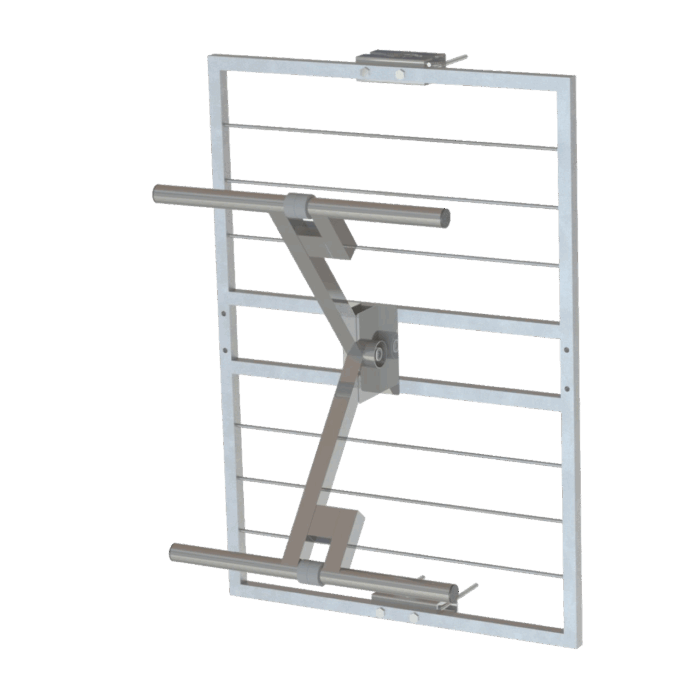

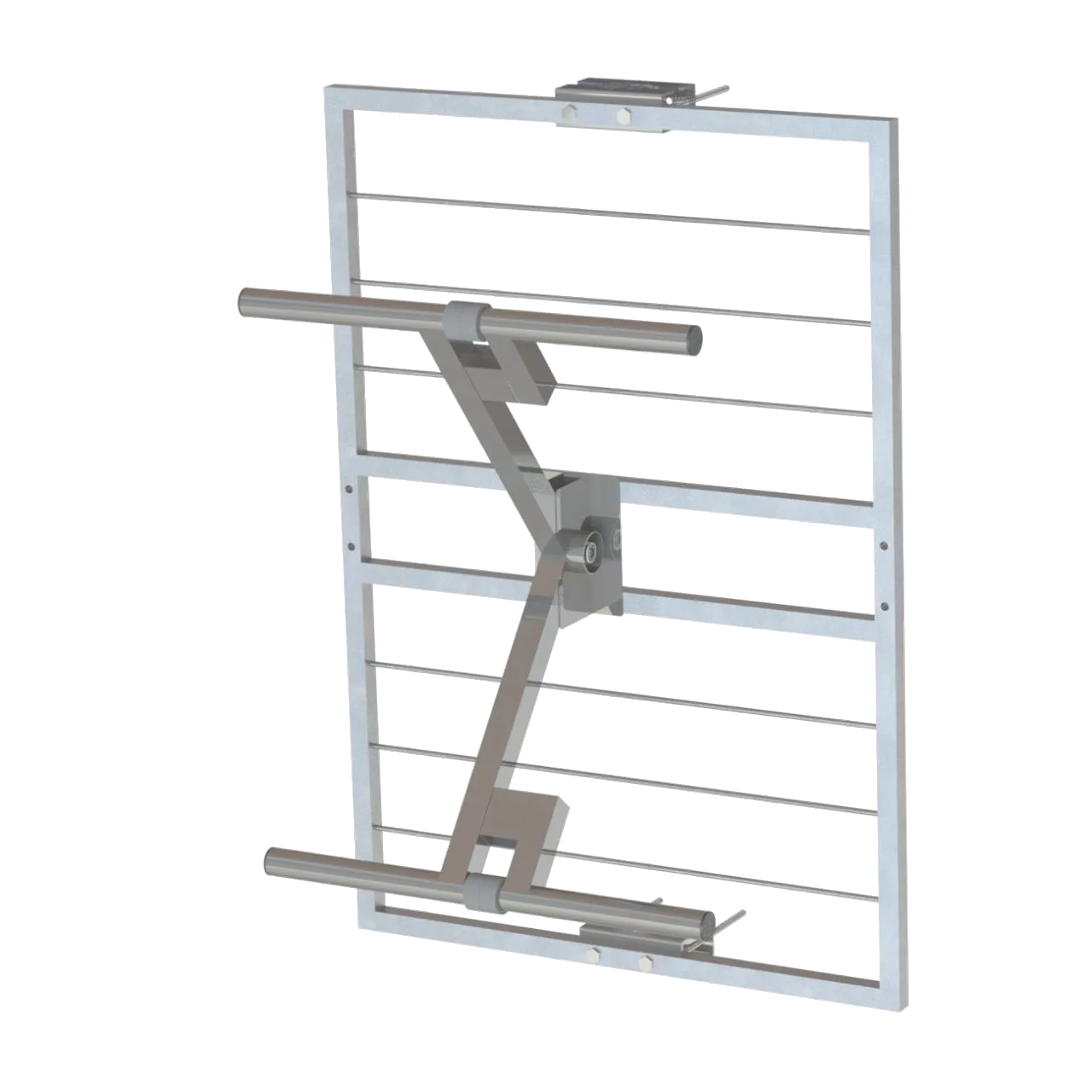

BROADBAND VHF PANEL ANTENNA DAB BROADCAST
DAB wideband VHF panel with a maximum capacity of 3KW and a 7/8 ″ type connector is a high resistance antenna, with a stainless steel dipole and a hot-dipped steel reflector, PTFE insulators and stainless steel screws . Suitable for high power systems with horizontal or vertical polarization. Both, mounted on the 4 faces of a tower, determine omnidirectional radiation diagrams.
