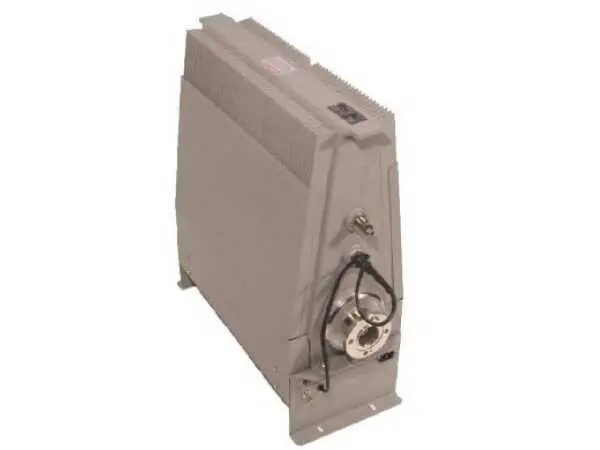

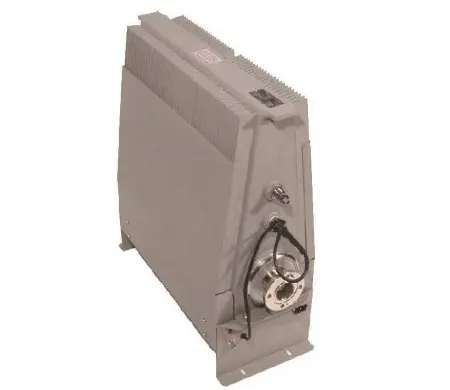

5000W RF DUMMY LOAD
5000W RF DUMMY LOAD
Dimension: 230x600x650 mm
Temperature range: -10 ÷ 50 °C
Weight: 43 KG
Freq. Range: DC ÷ 862 MHz
Max input Power: 5000W (C.W.)
Return loss: > 26 dB
Input Impedence: 50 Ohm
Connector: 7/8″ – 1 5/8″ – 3 1/8″
![DUMMY LOAD 5000W-COOLED OIL Electrical Characteristics Frequency range [MHz] DC÷862 Return loss [dB] ≥26 Input impedance [Ohm] 50 Maximum input power [W] 5000 (rms) Blower AC power [V] N.A.](https://www.broadcasteletec.com/wp-content/uploads/2023/04/DUMMY-LOAD-5000W-COOLED-OIL-600x600.jpg)
