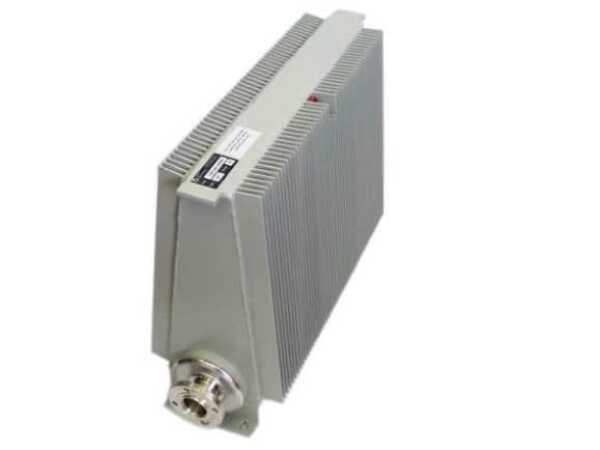

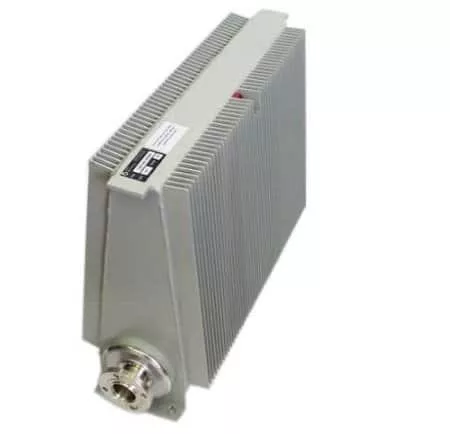

2500W RF DUMMY LOAD
2500W DUMMY LOAD
2500W RF DUMMY LOAD
Dimension: 230x600x500 mm
Temperature range: -10 ÷ 50 °C
Weight: 36 KG
Freq. Range: DC ÷ 862 MHz
Max input Power: 2500W (C.W.)
Return loss: > 26 dB
Input Impedence: 50 Ohm
Connector: 7/8″ – 1 5/8″ – 3 1/8″
