Microwave Radio Link 1100-2700 MHz

Description

Microwave Radio Link 1100-2700 MHz

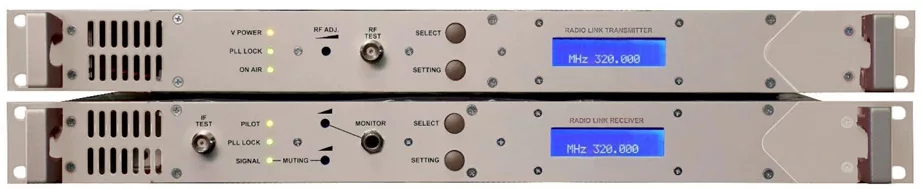

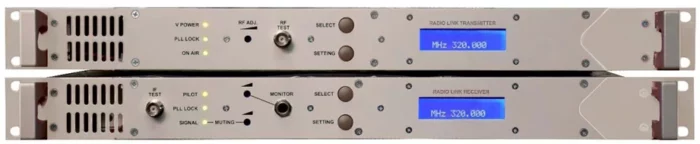

Microwave Radio Link TL1515 operate on the band range 1.100 – 2.700 GHz

Transmitter

  • Frequency Range: 1100~2700 MHz -20MHz sub-band
  • Type of Modulation FM Class F3
  • VCO Tuning 25 MHz
  • Frequency Stability ± 2,5ppm (Bettr 0n request)
  • Synthesizer Step 25KHz
  • Power Output 1 or 5 Watts
  • Spurious Emission < -80 dB or better
  • Harmonic Emission < -65 dB (-80 dB on request)
  • Stereo Separation > 55 dB @ 1 KHz
  • Distorsion < 0.2% (TYP 00.8 %) @ 1KHz)
  • Base Band 30 Hz – 60 KHz within 0.15 dB
  • Unweighted S/N Ratio > 72 dB rms at 30 Hz ~ 20 KHz
  • Enphasis 50 or 75 ?S – selectable
  • RF Connectors N-F 50 ohm
  • Input Base Band Imp. 2 Kohm
  • Input Mono Impedence 600 Ohm
  • Cooling Forced air
  • OP. Temperature Range 0 ÷ 45°C
  • Maximum Umidity 90%
  • AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
  • Dimension 1 Units Rack 19″ 44 cm Depth
  • Weight 6.8 Kg

Receiver

  • Frequency Ranges 1500~2500 MHz – 20MHz sub-band
  • Type of Modulation FM Class F3
  • VCO Tuning 25 MHz
  • Frequency Stability ± 2.5 ppm (Better on request)
  • Synthesizer Step 25KHz
  • Image Rejection 60dB Typ.
  • RN Noise Figure 6dB or lower
  • Stereo Separation > 45 dB @ 1 KHx
  • Distorsion < 0.5% (TYP 0.2 % @ 1KHz)
  • Base Band 30 Hz – 60 KHz within 0.08 dB
  • S/N Ratio > 72 dB with 0.2 mV input (Typ 78 dB)
  • Deenphasis 50 or 75 ?S int. selectable
  • RF Connectors N-F 50 ohm
  • B. Band-IF Conn. BNC-F
  • Base-Band Imp. < 30 ohm
  • Cooling Forced air
  • P. Temp. Range 0 ÷ 45°C
  • Maximum Umidity 90%
  • AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
  • Dimension 1 Units Rack 19″ 44 cm Depth
  • Weight 6.2 Kg
