Description

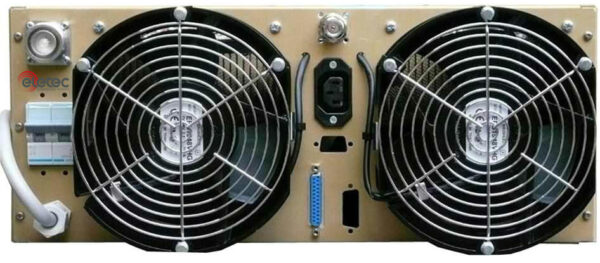

Broadcast 4kW Broadband FM Amplifier
4000 W broadband Amplifier

FREQUENCY RANGE 87.5 – 108 MHz
MODULATION FM
INPUT POWER 55 W MAX
POWER OUT 0 – 4000W
SPURIOUS EMISSION < -80Db
ARMONIC EMISSION < -75 db
ASYNCRONOUS AM S/N Ratio >65 dB Ref 100% AM 400Hz
SYNCRONOUS AM S/N Ratio >60 dB with FM @ 75KHz @ 400Hz
RF OUT CONNECTOR EIA 7/8”
OP. TEMPERATURE –10 – +45°C
MAXIMUM UMIDITY 90%
AC SUPPLY 180/240 VAC 380/400VAc
DIMENSION 4 unit rack 19”, 500mm depth
WEIGHT 30 Kg
MONITOR CONNECTOR BNC
