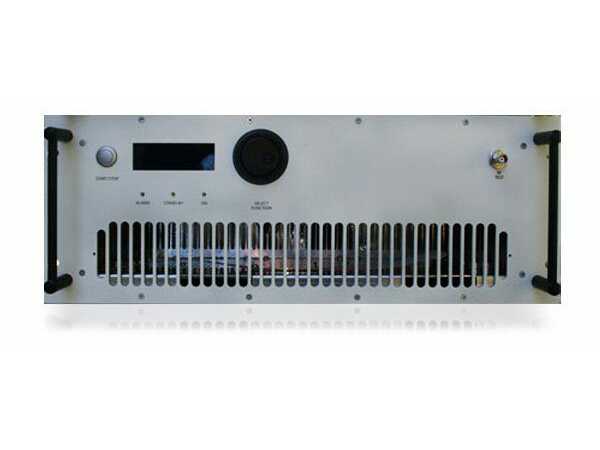

3kW FM Amplifier
ultra compact 3KW FM FM broadcasting amplifier

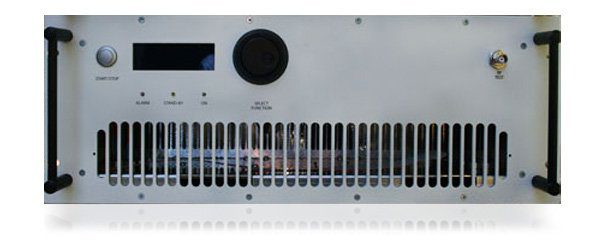

3kW FM Amplifier
ultra compact 3KW FM FM broadcasting amplifier.
| Frequency Range : | 87.5 – 108 MHz | |
| Modulation : | FM | |
| Input Power : | 30W nom / 40W max | |
| Output Power : | 0-3000W | |
| Spurious Emission : | <-80dB | |
| Harmonic Emission : | <-75 db | |
| Asyncronous AM S/N Ratio : | >65 dB Ref 100% AM 400Hz | |
| Syncronous Am S/N Ratio : | >60 dB with FM @ 75KHZ @400Hz | |
| RF Out Connector : | 7/16 Female – 7/8″ upon request | |
| AC Supply : | 180/240 VAC or 380/400 VAC | |
| Maximum Umidity : | 90% | |
| OP.Temperature : | -10 – 45 C | |
| AC Power Consumption : | >4900VA | |
| Dimensions : | 4 unit rack 1.9″, 500mm depth | |
| Weight : | 28Kg | |
| Monitor Connector : | BNC | |
| Monitor Attenuator : | 54dB typ. |
