Special offer 30KW FM Solid State Transmitter

Special offer 30KW FM Solid State Transmitter

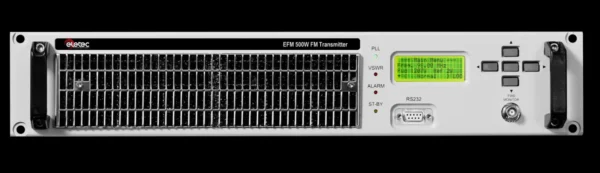

1 FM Broadcast Transmitter 30KW made by 500W Exciter, 2X15KW AMP,  combiner + 2 rack 28HE mod. EFM500+EAM30K



Price list : €

special offer : € 75.000,00





Share this
12 Apr 2018

EM2000 2KW FM TRANSMITTER

EM2000 2KW FM TRANSMITTER

Phase Locked Loop Programmable
FM Exciter/Transmitter 87.5 – 108 MHz Range

0 – 2000 Watts adjustable power

High-efficiency MOS-FET technology

Easy-to-use control interface



Innovative Compact FM broadcast transmitter for radio stations, hot-plug POWER SUPPLY module, high performance. Easy to maintain, high reliability, easier to operate …

Includes low pass/harmonic filter and can be used as a stand-alone transmitter
-Instant front panel programmability
-All functions via LCD password protected
-Adjustable power output from 10 to 2000 W
-Extractable power supplies
-Telemetry features include: power on-off, fwd & reflected power metering, modulation and temperature …



Compact 2000W FM Transmitter

Features
FREQUENCY RANGE: 87.5 ÷ 108 MHz
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: ± 2.5 ppm (bette upon request)
SYNTHESIZER STEP: 10KHz / 100KHz
POWER OUTPUT: 0 ÷ 3000 Watts 0 ÷ 5000 Watts
SPURIOUS EMISSION: < – 85 dBc or better
HARMONIC EMISSION: < – 74 dBc
MPX STEREO SEPARATION: > 56 dB @ 1KHz
HARMONIC DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.05 dB
UNWEIGHTED S/N RATIO: >80 dB (30Hz ÷ 15KHz 50μS RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 60 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 μS int. selectable
RF OUT CONNECTOR: 7/16”-F 50 Ohm 7/8″ 50Ohm
MPX INPUT CONNECTOR: BNC-F
MPX INPUT IMPEDANCE: 2 KOhm
SCA INPUT CONNECTOR: BNC-F
COOLING: High efficiency brushless fans
OP.TEMPERATURE RANGE: – 10 ÷ +45 °C
MAXIMUM UMIDITY: 90 % not condensing
AC SUPPLY: 110 ÷ 250 VAC – 47 ÷ 63 Hz
OVERALL EFFICIENCY >70%
DIMENSION: 5 unit rack 19″, 600mm depth



FM high power transmitters: 5, 10, 20 or 40 kW hot plug-in, analog & digital; or 300W, 500W, 1, 2, 3, 5, 6 kW analog & digital or turn-key FM Radio stations

Call or write to our: ELETEC RF specialists



Share this
11 Apr 2018

EM3000 3KW FM TRANSMITTER

EM3000 3KW FM TRANSMITTER

Phase Locked Loop Programmable
FM Exciter/Transmitter 87.5 – 108 MHz Range

0 – 3000 Watts adjustable power

High-efficiency MOS-FET technology

Easy-to-use control interface

3000W FM Transmitter Solid State, the new EM3000 FM Transmitter Exciter Series. Innovative FM broadcast transmitter for radio stations, hot-plug POWER SUPPLY module, high performance. Easy to maintain, high reliability, easier to operate.

Includes low pass/harmonic filter and can be used as a stand-alone transmitter
-Instant front panel programmability
-All functions via LCD password protected
-Adjustable power output from 10 to 2000 W
-Extractable power supplies
-Telemetry features include: power on-off, fwd & reflected power metering, modulation and temperature.

-Latest audio sound in the FM Broadcasting industry with TOP Audio & RF technology.

3000W FM Transmitter

Features

FM3K FM5K
FREQUENCY RANGE: 87.5 ÷ 108 MHz
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: ± 2.5 ppm (bette upon request)
SYNTHESIZER STEP: 10KHz / 100KHz
POWER OUTPUT: 0 ÷ 3000 Watts 0 ÷ 5000 Watts
SPURIOUS EMISSION: < – 85 dBc or better
HARMONIC EMISSION: < – 74 dBc
MPX STEREO SEPARATION: > 56 dB @ 1KHz
HARMONIC DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.05 dB
UNWEIGHTED S/N RATIO: >80 dB (30Hz ÷ 15KHz 50μS RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 60 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 μS int. selectable
RF OUT CONNECTOR: 7/16”-F 50 Ohm 7/8″ 50Ohm
MPX INPUT CONNECTOR: BNC-F
MPX INPUT IMPEDANCE: 2 KOhm
SCA INPUT CONNECTOR: BNC-F
COOLING: High efficiency brushless fans
OP.TEMPERATURE RANGE: – 10 ÷ +45 °C
MAXIMUM UMIDITY: 90 % not condensing
AC SUPPLY: 110 ÷ 250 VAC – 47 ÷ 63 Hz
OVERALL EFFICIENCY >70%
DIMENSION: 5 unit rack 19″, 600mm depth

Share this
01 Apr 2018

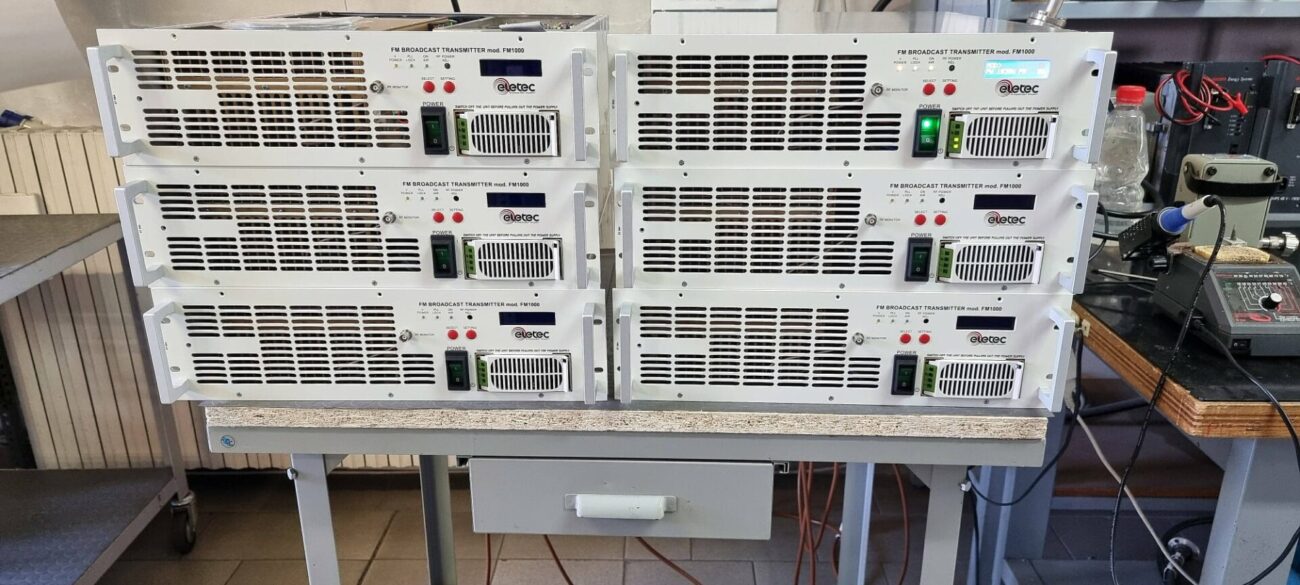

new series of ELETEC BROADCAST FM Transmitters

new series of ELETEC BROADCAST FM Transmitters



Some features:

– The display is a graphic and it can show parameters when when you turn ON the equipment

–  In the 2HE high eletec made now to 1KW power !

– the Transmitter can be made (as option) with included:

▬ Stereocoder

▬ RDS Coder

▬ LAN interface

▬ WEB Server

▬ SNMP

▬ RS485 (two port)



– All settings and measures are managed only by one rotary knob.

– advanced connections

►  Available from 100W, 250W, 300W, 500W, 600W, 1000W, 1200W to 2KW now !



For any question please feel free to contact eletec broadcast at 0033 4 93 019 999 or sales@broadcasteletec.com



Share this
25 Feb 2018

How to tune a Coaxial Filter

How to tune a Coaxial Filter

In Fig is shown the connection between Network Analyzer and a Coaxial Filter: with this kind of connection you can measure the Return Loss and the Standing Wave Ratio of the cavity. The frequency Span of the test instrument will be from 5 to 10 MHz. Moving them symmetrically, the return loss change and the frequency will move slowly. The B.W. command allows to set the selectivity of the filter. With the B.W. command extremely open the selectivity will be minimum as the attenuation loss. With the B.W. command closed the selectivity will be maximum as the attenuation loss.
The Coaxial Filter is tuned by move up/down the 2 knobs named “TUNE” for the frequency and rotate the in/out connectors named “LOAD” for the correct Return Loss.
Usually it is better to tune the coaxial filter trying to obtain the best Return Loss inside the wanted band, this is the best way to obtain also a low attenuation between the input and the output port of the filter. If a measure like this is made only using the SWR meter of a transmitter it could be possible to make a big mistake, because the operator could think he optimized the transmission while instead the transmitter is working at the left or right side of the band, so during the modulation it could happen that the SWR increases.

Share this
21 Feb 2018

Radio DAB Transmitters – Digital Audio Broadcasting

Radio DAB Transmitters – Digital Audio Broadcasting

DAB Transmitter



Supported standards: DAB, DAB+, T-DMB
Excellent MER over 33dB
Very high efficiency
Easy maintenance design
Complete remote control (Web & SNMP)
Compatible with all major headend brands

The new radio DAB Transmitters are reaching the highest technology level in both Digital Signal Processing and RF domain.

Top performances are possible thanks to:

Improved digital adaptive precorrection and configuration flexibility
To meet and exceed all the Digital Radio International Broadcasters requirements, optimizing modulation performances in every working condition.

High-Efficiency new SFK Amplifiers Latest generation LDMOS devices
more rugged and efficient, special low-loss design of matching and combining system, high-efficiency power supplies (over 96%). Widely reduced overall consumption.

Hot pluggable power supplies and RF modules
All RF power modules are hot pluggable (both liquid and air cooled) for an easy and fast maintenance on site. All RF power modules are equipped with hot pluggable independent power supplies for maximum redundancy and easy selection of the operating mode between single phase or balanced three phases. The latest generation of industry higher class power supplies grants over 96% efficiency with wider input AC range capability and greater ruggedness.

Compactness Compact-sized amplifier modules thanks to a new concept of heatsync and ultracompact power supplies, both in air or liquid cooling systems. A 5 kW rms DAB Transmitter in a single rack is just an example of this extreme compactness.

Smart System Design
Latest generation RF combiner technology with ultracompact unbalancing dummy loads and a smart intercommunication interface between RF modules, drivers, and Logical Control System.



DAB FEATURES
• Supported standards: DAB, DAB+, T-DMB (optional)• Frequency range: VHF (III) 170 MHz to 255 MHz, L band on request.• DAB-Modes: I, II, III, IV.• Network type: MFN, SFN.• Bandwidth 1.536 MHz.• Reference Standard: ITU-T G703-G704, EN 300401, EN 300799, EN 302077-2.• DAB Signal Input – ETI (NI) 2.048 MHz or ETI (NA), according to ETSI EN 300 799 Input Connectors: BNC (F), 75 – EDI (Encapsulation of DAB Interface) according to ETSI TS 102 693 Input Connectors: Ethernet, RJ45• Typical MER >33dB at all power levels and in all channels with shoulders >37dB without mask filter.• Integrated GPS/Glonass Professional Receiver.• Built-in high stability OCXO.• Fully qualified for SFN – Hitless input switching• Seamless switching between EDI/ETI inputs without broadcasting interruption.• Integrated SNMP management with events log.• Integrated GbE interface for management• Digital linear adaptive pre-correction.• Digital non-linear adaptive precorrection with automatic curves loading for each channel and power levels.• Wide Range Power Supply 90-264 V AC (3 phase) in fuse-free configuration (SW Standby Switch).• Quick-acting protection circuits against overpower and direct/reflected power.• Protection against reflected power with automatic fold-back.• Easy SW/FW update.• Security Authentication for GUI access • High Definition Color Display.

Digital audio broadcasting transmitter

Share this
27 Jan 2018
27 Oct 2016

FM Fine Matcher

FM Fine Matcher

Now ing have under test the new ” FM Fine Matcher ” to adapt and reduce the SWR in not perfect antenna systems.

For more information about FM Fine Matcher, call us at 0033 4 93 019 999

Share this
